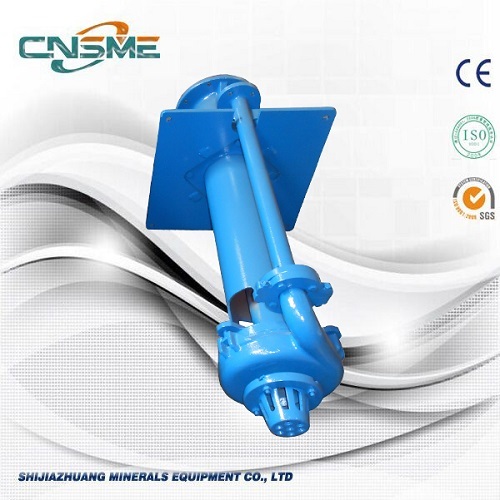

vertical single stage coal washing slurry pump
Introduction:
-Fully elastomer lined or hard metal fitted
-Double suction semi-open impeller
-No submerged bearing or packing
-Optional recessed impeller and suction agitator available
-MVR models feature full rubber covering for corrosion resistance
-Can be run in insufficient suction duties
A brief introduction of the slurry pumps we offer:
Slurry Pump Series:
1. Metal Lined Slurry Pump, SH Type; 2. Rubber Lined Slurry Pump (SHR Type); 3. Hi-Pressure Slurry Pump (SBH Type);
Gravel Pump Series:
1. Hard Metal Sand Pump (SG, SHG Type); 2. WN Dredging Pump (WN Type);
Sump Pump Series:
1. Metal Vertical Slurry Pump (SV Type); 2. Rubber Vertical Slurry Pump (SVR Type);
Local Pump Series:
1. Power Plant Slurry Pump (ZBG Type); 2. Coal Washing Slurry Pump (ZJ Type);
Froth Pump Series
Specifications:
|
Model |
SV-40P |
|
Capacity |
19.44-43.2m3/h |
|
TDH |
4.5-28.5m |
|
Rated Motor Power |
15Kw |
|
Speed |
1000-2200r/min |
|
Max. Efficiency |
40% |
|
Standard Shaft Length |
900mm |
Construction of SV Sump Pumps:
Materials of Construction:
|
Part Description |
Material |
|
Casing |
A05- High Chromium Alloy |
|
Impeller |
A05- High Chromium Alloy |
|
Back Liner |
A05- High Chromium Alloy |
|
Shaft |
Carbon Steel |
|
Mounting Plate |
Mild Steel |
|
Strainers |
Metal |
Performance Curve:
Projects with Robust Vertical Pumps:
Orders of Quality Sump Pumps:
