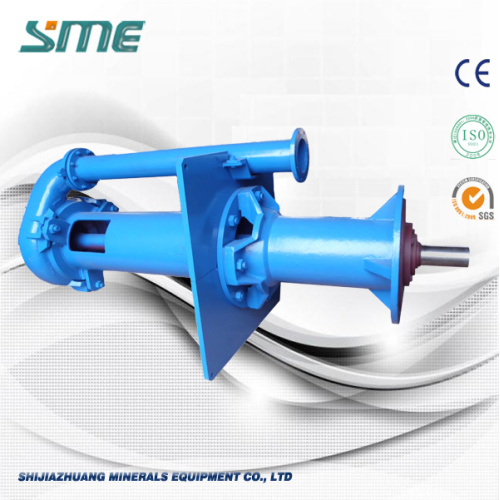

Single Volute Long Wear Life SV-200S Vertical Pump
Introduction:
The biggest character of SV-200S is that [wet end" parts have large material sections for extra long wear life and are designed for the toughest of applications. Single volute and generous solids passage through the pump ensure safe and clogless operation.
All CNSME's sump pumps are designed specifically for abrasive slurries and feature robust design with ease of maintenance.
SV/200S vertical grout solid slurry pumps are vertical, centrifugal slurry pumps that in liquid to handle abrasive, large particle and high concentration slurries. It can operate normally without shaft gland and shaft gland water, even lack of intake. RS pump body is made from antifriction metal, the impeller is made from antifriction metal or rubber and polyurethane. Submerged parts of the RS(R) pump coated rubber for transportation corrosive slurry.
A brief introduction of the slurry pumps we offer:
Slurry Pump Series:
1. Metal Lined Slurry Pump, SH Type; 2. Rubber Lined Slurry Pump (SHR Type); 3. Hi-Pressure Slurry Pump (SBH Type);
Gravel Pump Series:
1. Hard Metal Sand Pump (SG, SHG Type); 2. WN Dredging Pump (WN Type);
Sump Pump Series:
1. Metal Vertical Slurry Pump (SV Type); 2. Rubber Vertical Slurry Pump (SVR Type);
Local Pump Series:
1. Power Plant Slurry Pump (ZBG Type); 2. Coal Washing Slurry Pump (ZJ Type);
Froth Pump Series
Specifications:
|
Model |
SV-200S |
|
Capacity |
189-891m3/h |
|
TDH |
6.5-37m |
|
Rated Motor Power |
110Kw |
|
Speed |
400-850r/min |
|
Max. Efficiency |
64% |
|
Standard Shaft Length |
1800mm |
Construction of Sump Pump:
Materials of Construction:
|
Part Description |
Material |
|
Casing |
A05- High Chromium Alloy |
|
Impeller |
A05- High Chromium Alloy |
|
Back Liner |
A05- High Chromium Alloy |
|
Shaft |
Carbon Steel |
|
Mounting Plate |
Mild Steel |
|
Strainers |
Metal |
Performance Curve:
Projects of SV Vertical Slurry Pumps:
Orders of SV Sump Pumps:
