Vertical Slurry Pump Metal
- Payment Type:
- T/T, Western Union
- Incoterm:
- FOB, CFR, CIF, FCA
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 7 Days
- Transportation:
- Ocean, Land, Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 100 Sets per Month |
| Supply Ability: | 100 Sets per Month |
| Payment Type: | T/T,Western Union |
| Incoterm: | FOB,CFR,CIF,FCA |
| Certificate: | ISO/CE |
| HS Code: | 84137099.90 |
| Transportation: | Ocean,Land,Air |

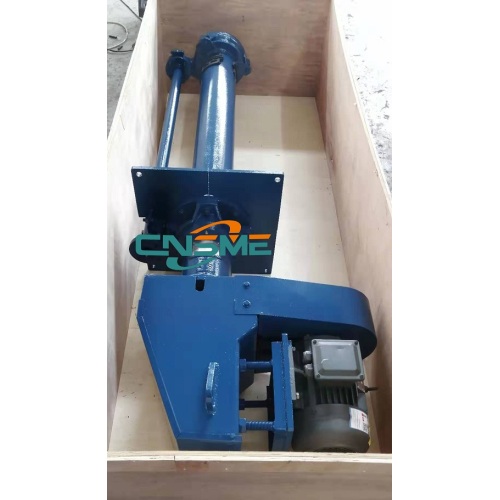

Vertical Slurry Pump Metal
Introduction:
Vertical cantilever slurry pumps are widely used for open and wet pits. The shaft length can be 900mm, 1200mm, 1500mm and upto 3000mm. The vertical sump pumps are single casing design. The part beneth the mounting plate will be immerged in water.
Description
Shaft Type
Material
Driven by
Sump Pump
Vertical Cantilever
High Chrome Alloy A05
Electric Motor
1. Series SP(R) sump slurry pumps are vertical and centrifugal slurry pumps, which work submerged to transport the abrasive and high-density slurry with large particles. The pumps have no need for any shaft seal and sealing water. They can also run under the conditions of inadequate suction duty.
Wet parts of SP(R) pump are made of wear-resistant metal.
2. All parts of SP(R)pump immersed in liquid are equipped with rubber liner, which is suitable for delivering the non-edge abrasive slurry.
3. Sump pump with extended-length shaft (L Series) is suitable to operate in deeper level in liquid. Guide bearing is added on this pump to make its operation more stable and flushing water should be fixed at the position of guide bearing.
A brief introduction of the slurry pumps we offer:
Slurry Pump Series:
1. Metal Lined Slurry Pump, SH Type; 2. Rubber Lined Slurry Pump (SHR Type); 3. Hi-Pressure Slurry Pump (SBH Type);
Gravel Pump Series:
1. Hard Metal Sand Pump (SG, SHG Type); 2. WN Dredging Pump (WN Type);
Sump Pump Series:
1. Metal Vertical Slurry Pump (SV Type); 2. Rubber Vertical Slurry Pump (SVR Type);
Local Pump Series:
1. Power Plant Slurry Pump (ZBG Type); 2. Coal Washing Slurry Pump (ZJ Type);
Froth Pump Series
Specifications:
|
Model |
SV-40P |
|
Capacity |
19.44-43.2m3/h |
|
TDH |
4.5-28.5m |
|
Rated Motor Power |
15Kw |
|
Speed |
1000-2200r/min |
|
Max. Efficiency |
40% |
|
Standard Shaft Length |
900mm |
Construction of SV Sump Pumps:
Materials of Construction:
|
Part Description |
Material |
|
Casing |
A05- High Chromium Alloy |
|
Impeller |
A05- High Chromium Alloy |
|
Back Liner |
A05- High Chromium Alloy |
|
Shaft |
Carbon Steel |
|
Mounting Plate |
Mild Steel |
|
Strainers |
Metal |
Performance Curve:
Projects with Robust Vertical Pumps:
Orders of Quality Sump Pumps:
