F43CX hot/cold blast valve

Get Latest Price

Delivery Time:: 45 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Hebei, China (Mainland)

Product Description

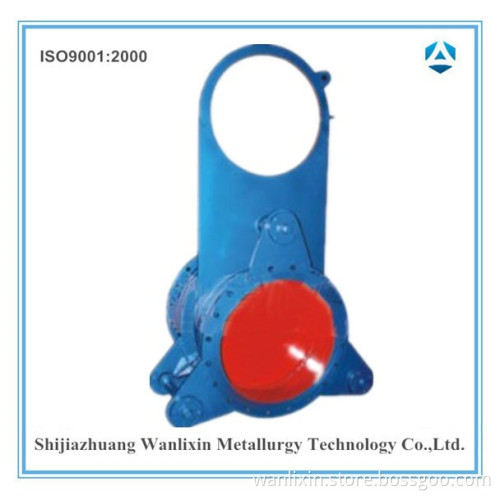

manufacturer of hot cold blast valve for furnace F43CX Manual fan shape blind plate valve

The manual fan shape blind plate valve is with a long structure,equipped with compensator device in the right valve body,generally used in long pipe line(can not used as compensator). Drawing of F43CX valve

F43CX valve appearance & size

DN	L	D	D1	H	A	b	n-d	Unit weight kg
DN	L	D	D1	H	A	b	n-d	PN0.05	PN0.15	PN0.25
200	500	320	280	310	350	18	8-18	75	85	90
250	500	375	335	330	400	18	12-18	95	100	105
300	500	440	395	350	450	18	12-23	160	176	190
350	500	490	445	380	500	18	12-23	200	220	240
400	600	540	495	405	550	24	16-23	240	245	270
450	600	595	550	430	600	26	16-23	310	340	400
500	600	645	600	750	680	26	16-23	350	385	420
600	600	755	705	830	840	26	20-26	450	495	440
700	630	860	810	880	1050	28	24-26	540	590	640
800	630	975	920	900	1150	28	24-30	650	710	700
900	630	1075	1020	1000	1300	28	24-30	880	970	1050
1000	630	1175	1120	1100	1450	28	28-30	980	1075	1096
1200	630	1375	1320	1400	1550	28	32-30	1220	1340	1460
1300	630	1475	1420	1475	1625	25	32-30	1440	1184	1720
1400	750	1575	1520	1550	1700	30	36-30	1750	1825	2000
