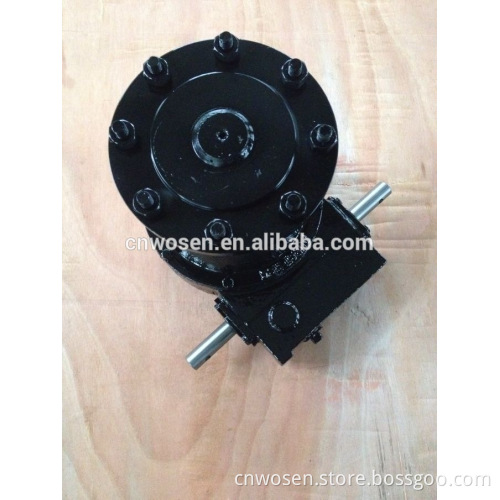

wheel drive agricultural gearbox with gears drive

Irrigation Sprinkler gearbox are special-purpose speed reducers,which produce for the   large-scale circular watering machine and the translation type watering machine.   According to the use, the gear reducer are divided into the electrical machinery speed   reducer and the wheel speed reducer, the powe is 0.75-1.5hp,a speed reducer pair of axis   drives two wheel speed reducers separately.     Application: 1. It is the driving device for irrigation machinery.   2. It is used in middle axle driving irrigation equipment,linearity motion and tube irrigation   3. It adopts the worm gear and worm shaft to do the transmitting work. Performance Data

Model	Ratio	Shaft size	Weight	Torque
W7824	50:1	2.25”	50	7909Nm
W7786	52:1	2.25”	53	7909Nm
W7967	50:1	2.25”	55	7909Nm
W7826	52:1	2.25”	60	7909Nm
W7939	50:1	2.25”	53	7909Nm
W7939T	50:1	2.25”	60	7909Nm
W725U	50:1	2.25”	50	7909Nm
W8760	50:1	2.25”	79	10170Nm
W740U	50:1	2.25”	51	7909Nm
W740UV	52:1	2.25”	54	7909Nm
TNT2U	50:1	2.25”	55	7909Nm
TNT2UV	52:1	2.25”	57	7909Nm
