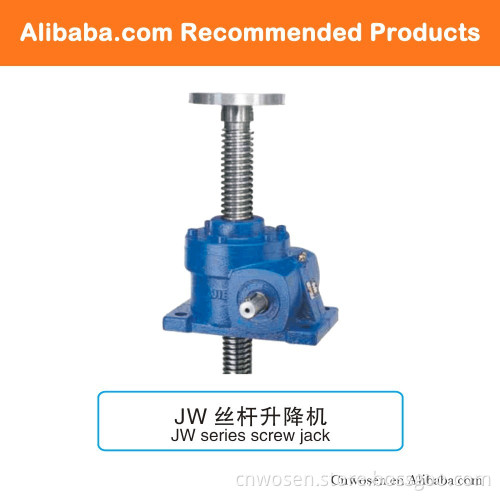

electric lifting jack

electric lifting jack Product Description

Type:	Worm Gear Screw Jack/ electric lifting jack
Model:	SWL0.05-SWL120( 200KG,500KG,1T,1.5T,2T,2.5T,3T,5T,10T,15T,20T,30T,40T,50T,100T,120T) Ball Screw
Ratio:	1/8,1/10,1/12,/1/15,1/20,1/24,1/30,1/40
Color:	Grey,Blue
Material:	Housing-Casting iron-HT200#
	Worm Gear- Cooper-10-3 #
	Worm-20CrMnTi with carburizing and quenching, surface hardness is 56-62HRC
	Shaft & Screw-chromium steel-45#
Packing:	Paper carton,Plywood box / per set(With foam board inside)
Bearing:	Brand "HRE" Bearing
Seal:	NAK Seal from TAIWAN
Warranty:	1 year
Input Power:	Various Power
Usages:	In industrial machine: Food stuff,Ceramics,chemical, aswell as packing, printing,  dyeing,woodworking, glass and plastics…..
IEC Flange:	80B5,90B5,100B5,112B5,132B5.....
Lubricant:	Synthetic & Mineral

  Function: Screw jack( electric lifting jack ) is a basis jack-up part, accomplanish the fuctions such as lifting, drop, push and inverting through worm gear drives screw.   Advantages: -Self-locking ability -Can be driven directly by motor or other power or manual -Can be customized according user's demand -Compact configuration, small size, lightweight -Convenient installation, flexible operation -High reliability and stability -Long service life -More connection form etc.   Application Industry: Screw jak is applied to all fields for lifting or pulling, such as Aircraft maintenance platform, Solar plate, machinery, metallurgy, water conservancy, medical treatment, chemical industry, culture and hygienist etc.
