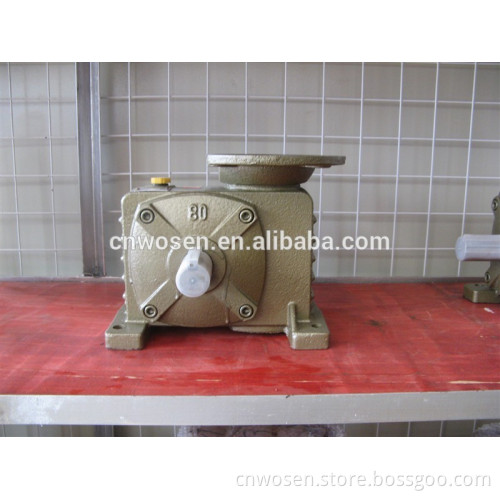

WP series worm agricultural gear speed reducer

WP series worm agricultural gear reduction motor     WP worm gearbox is widely used in turbines,shaft liners and axletrees.       Performance and characteristics:
1. A basic input shaft connection mode type (single-and dual-input shaft input shaft), with motor flange two.
2. The basic structure of the output shaft type (single output shaft, dual output shaft) and the hollow output shaft two.
3. Output, input shaft position and direction of the input shaft on the next; output axis up and down; input axis up and down.
4. Can be 2 or 3 sets of gear reducer composed of multi-level, to get great gear ratio

Type:	wp gears reduction gear
Model:	WPA40-250
Ratio:	10,15,20,25,30,40,50,60
Color:	Green,Brown
Material:	Housing-Casting iron-HT200#
	Worm Gear- Cooper-10-3 #
	Worm-20CrMnTi with carburizing and quenching, surface hardness is 56-62HRC
	Shaft-chromium steel-45#
Packing:	Paper Carton,Plywood box / per set(With foam board inside)
Bearing:	Brand "HRE" Bearing
Seal:	NAK Seal from TAIWAN
Warranty:	1 year
Input Power:	0.55kw,0.75kw,1.1kw,1.5kw,2.2kw,4kw,5.5kw,7.5kw
Usages:	In industrial machine: Food stuff,Ceramics,chemical, aswell as packing, printing,  dyeing,woodworking, glass and plastics…..
IEC Flange:	80B5,90B5,100B5,112B5,132B5....
Lubricant:	Synthetic & Mineral
