seed and grain claening machine line

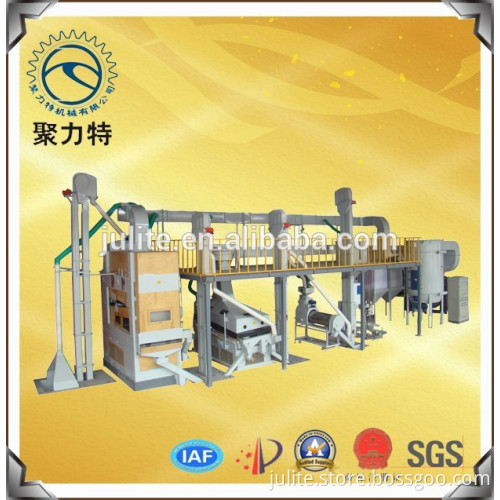

  Introduction:   5XFS-series Air-screen Cleaner consists of Bucket Elevator, Dust Catcher, Vertical Screen, Vibration   Sieve and Grain Exits. It is to clean the light impurity through vertical air sieve according to grains   aerodynamic feature, then go into vibration sieve, clean big and small impurity by different types of   high precise sieve in accordance with different grain size. Three-layer screening machine classify   the material to big and small grain; four-layer screening machine classify to big, middle and small   grain. This series is widely used in seed processing and agricultural product processing industry.

Model	Layer	Sieve Surface Area (mm)	Power Kw	Capacity Kg/h	Weight Kg	Selecting Rate	Overall Size L×W×Hmm
5XFS-5B	Three	1000x2000	7.74	5000	1600	98%	4050×1900×2800
5XFS-5C	Four	1000x2000	8.1	5000	1650	98%	4050×1900×2800
5XFS-7.5B	Three	1250x2400	8.5	7500	1800	98%	4500×2050×3100
5XFS-7.5C	Four	1250x2400	8.5	7500	1890	98%	4500×2050×3100
5XFS-10B	Three	1500x2400	10.5	10000	1900	98%	4500×2300×3100
5XFS-10C	Four	1500x2400	10.5	10000	2020	98%	4500×2300×3100
