Dissolved oxygen controller with the memberance DO probe High Accuracy ,

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China (Mainland)

Product Description

Hebei Create Instrumentation Technologies Co., Ltd. is a professional developer and manufacturer of electrochemical analysis instruments and transmitters. It specializes in the fields of water purification inline monitoring, process water integration management system, environmental protection and industry wastewater treatment process management systems. Hebei Create is the leading company of inline water quality analysis & dosing systems. Technicial Features

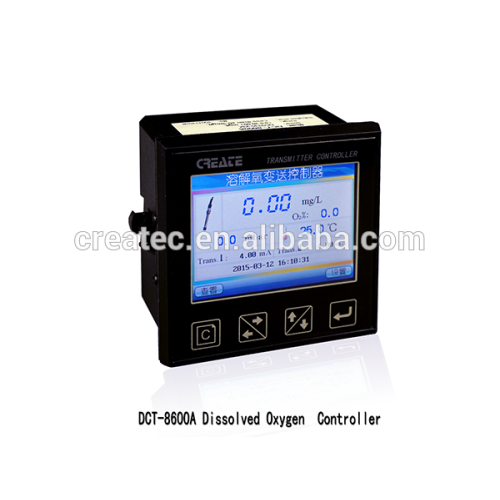

Instrument mode		DCT-8600A Dissolved Oxygen/Temperature Transmitting Controller
Matched sensor		DO3135-23Z Dissolved Oxygen Sensor
Temperature sensor		Within the Dissolved Oxygen Sensor itself
Measurement range	Dissolved Oxygen	(0.0~20.00)mg/L
	Temperature	(0.0~40.0)℃
Resolution	Dissolved Oxygen	0.01 mg/L
	Temperature	0.1℃
Stability	Dissolved Oxygen	0.1 mg/L
	Temperature	0.2℃
Indication error	Zero error	±0.10 mg/L
	Dissolved Oxygen	±0.30 mg/L
	Temperature	±0.5℃
Approximate equivalent input impedance		5×1012Ω
Salinity compensation error	Dissolved Oxygen	±2%
Compensation range	Temperature compensation	(5~45)℃
Working environment	Temperature	(0~50)℃
	Humidity	≤85% RH
Length of matched cable		≤30m (5m)general
Instrument consumed power		≤5W
Photoelectric switch control output		Three-with isolated photoelectric control output
Electric current loop		Two-way can transfer and convert, mutual isolated (4~20)mA electric current loop output Output accuracy: ±0.1mA (loop resistance≤400Ω)
Supply voltage		DC 24V ±4V
Protection level		IP65(add back cover)
Fixed form		Panel mount rapid stationary type
Machine size		96mm×96mm×94mm (H×W×D)
Hole size		91mm×91mm (H×W)

If you have any questions ,please contact with me freely . Hebei Create Instrumentation Technologies Co., Ltd Add:No.368 North Xinshi Road, Shijiazhuang 050091,Hebei Province,China. Contact:Ms Liceya Skype: liceya.create (at ) hotmail (dot)com Email: liceya (at)createc(dot)cn Delivery : You can choose the Express or with the shipping .
