swimming pool water meter , ORP meter , oxygen analyzer

Get Latest Price

Delivery Time:: 1 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Hebei, China (Mainland)

Product Description

Hebei Create Instrumentation Technologies Co., Ltd. is a professional developer and manufacturer of electrochemical analysis instruments and transmitters.
It specializes in the fields of water purification inline monitoring, process water integration management system, environmental protection and industry wastewater treatment process management systems. Hebei Create is the leading company of inline water quality analysis & dosing systems. Technical Features

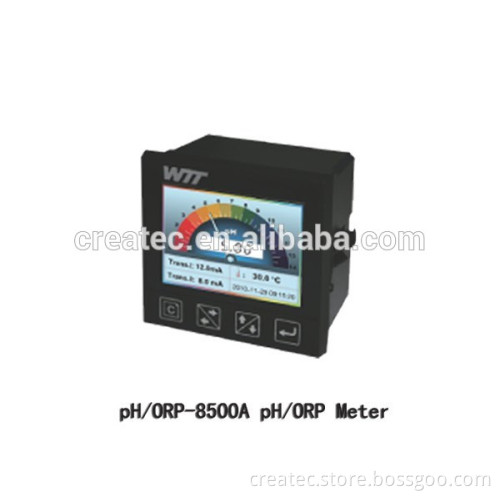

Model No.	pH/ORP-8500A pH/ORP transmitting controller
Measurement Parameter	Range		Resolution	Accuracy
pH	0.00 ~14.00		0.01	±0.1
ORP	(-1999 ~ +1999)mV		0.1mV	±5mV( Indicator )
Temperature	(0.0 ~ 100.0)℃		0.1	±0.5
Medium temperature compensation	(0.0~50.0)℃
Temperature components	NTC10k temperature components
(4~20)mA Current output	Channels	Double channels
	Features	Isolated, adjustable, reversible, 4-20MA output, instruments/ transmitter mode.
	Loop resistance	400Ω(max),DC 24V
	Resolution	±0.1mA
Control contact	Channels	Triple channels
	Contact	Photoelectric relay output
	Programmable	Programmable(temperature,pH/ORP) output
	Features	Could set pH/ORP/ temperature/ timing. NO/NC/pH PID selection
	Resistance load	50mA(max)AC/DC 30V
Data communication	RS485,modbus protocol
Power supply	DC 24V±4V
Consumption	<5.5W
Working environment	Temperature:(0~50)℃ Relative Humidity :≤85%RH( non- condensing )
Storage	Temperature :(-20~60)℃ Relative Humidity:≤85%RH(non- condensing)
Protection level	IP65(with rear cover)
Outline dimension	96mm ×96 mm ×94mm (H×W×D)
Hole dimension	91mm×91mm
Installation	Panel.

Order Directory Complete Set:

Transmitting controller	1pc(including one pair of fast installation clamp/back cover )
Instruction manual	1pc
Temperature sensor	1 pc(optional)

If you have any questions ,please contact with me freely . Hebei Create Instrumentation Technologies Co., Ltd Add:No.368 North Xinshi Road, Shijiazhuang 050091,Hebei Province,China. Contact:Ms Liceya Skype: liceya.create (at ) hotmail (dot)com Email: liceya (at)createc(dot)cn Delivery : You can choose the Express or with the shipping .
