  Hebei Create Instrumentation Technologies Co., Ltd. is a professional developer and manufacturer of electrochemical analysis instruments and transmitters.
It specializes in the fields of water purification inline monitoring, process water integration management system, environmental protection and industry wastewater treatment process management systems. Hebei Create is the leading company of inline water quality analysis & dosing systems.   Technical Features

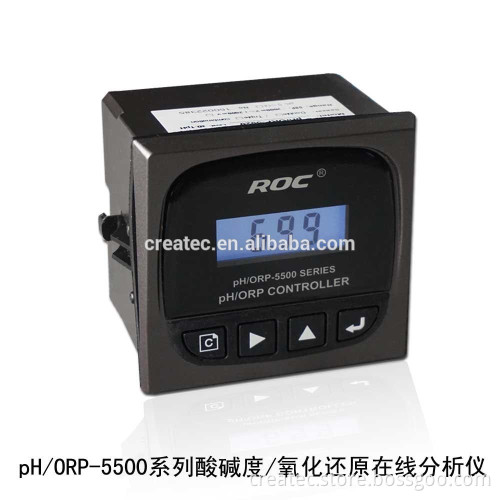

Model				pH/ORP-5500 series pH/ORP online transmitting controller
Measurement range		pH		0.00~14.00
		ORP		-2000mV~2000mV
		Temp.		(0.0~50.0)℃(temperature compensation component:NTC10K)
Resolution		pH		0.01
		ORP		1mV
		Temp.		0.1℃
Accuracy		pH		0.1
		ORP		±5mV(electronic unit)
		Temp.		±0.5℃
Approximate input impedance				3×1011Ω
Buffer solution				pH value: 10.00;9.18;7.00;6.86;4.01;4.00
Temp.compensation range				(0~50)℃(with 25℃ as standard)  Manual and automatic temperature compensation
(4~20)mA	Characteristics			Isolated,fully adjustable,reverible,instrument/transmitter for selection
	Loop resistance			500Ω(Max),DC 24V
	Accuracy			±0.1mA
Control contact	Electrical contacts			Double relay SPST-NO,return model
	Loop capacity			AC 220V/AC 110V 2A(Max);DC 24V 2A(Max)
Power consumption				<3W
Working environment			temperature	(0~50)℃
			humidity	≤85%RH(none condensation)
Storage environment				Temp.(-20-60) ℃;relative humidity:≤85%RH(none condensation
Outline dimension				96mm×96mm×105mm(H×W×D)
Hole dimension				91mm×91mm(H×W)
Installation				Panel mounted,fast installation

  Order direction :   Basic order units : pH/ORP-5500 pH/ORP Meter (DC24V) pH/ORP-5500 pH/ORP Meter (AC110V) pH/ORP-5500 pH/ORP Meter (AC220V)   If you have any questions ,please contact with me freely .   Hebei Create Instrumentation Technologies Co., Ltd Add:No.368 North Xinshi Road, Shijiazhuang 050091,Hebei Province,China. Contact:Ms Liceya Skype: liceya.create (at ) hotmail (dot)com Email: liceya (at)createc(dot)cn    Delivery : You can choose the Express or with the shipping .
