Electric Power Fittings Preformed Dead End Grip

Specifications a. Excellent Quality

b. Competitive Price

c. Simple Installation

d. Good Corrosion Resistance

e. Best Service

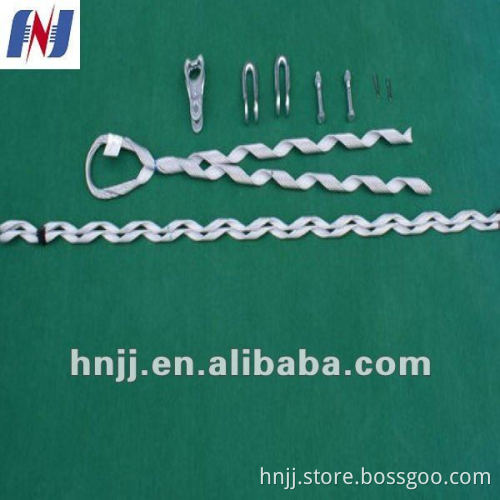

1.Specification:    a) High-quality aluminum clad material, To improve the mechanical properties of the clamp and corrosion resistance.   b) The clamp has the advantages of simple installation, No special tools needed, and one person can finish the whole installation.   d) The formed wire inner and outer layer components are designed to transfer axial tensile loads and distribute radial compressive forces over the surface in contact with OPGW to minimize effects on the central core and internal optical fibers.   e) Once installed, the structural reinforcing rods and formed dead-end components may be removed and reinstalled once for repositioning purposes. DO NOT reuse after this initial installation. The hardware may be reused as desired if in good condition. DO NOT modify any component.    f) Better seismic performance, To extend the system lifetime.   2.Components:  a) Inner/Outer performed wire: Aluminum Covered Steel with Grit Applied     b) Thimble Clevis(Ring): Galvanized Ductile Iron     c) Extension Link(Plate): Extension Link & Pin are galvanized steel or galvanized ductile iron. A stainless steel cotter key is provided to capture the pin     d) Anchor Shackle(U-type Ring): Galvanized steel forging   e) Grounding Wire Assembly(Option): Aluminum conductor with aluminum compatible lug     3.Holding Strength:   Specific holding strengths on an OPGW cable will depend upon that cable's internal construction design and composition of the materials used for the individual strands. The highest holding capabilities exist with cable that use all aluminum clad steel strands in a single layer. Use of multi-layer and/or aluminum alloy strands may reduce holding capabilities.   4.Construction Site:   5.Productivity:     6.Packaging:     7.Delivery:     8.Facility:     9.Certification:
