sell double facer belt

double facer belt

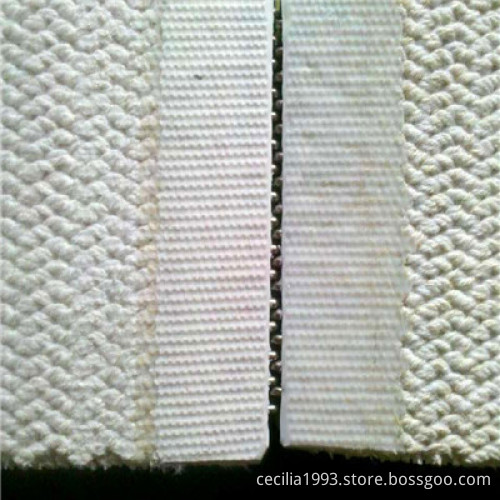

double facer belt was developed to high speed running and rapid dying of the corrugated board. The structure and the quality of the belt facilitates steam evaporation from the paperboard. The belt is 3-layer belt. The structure of two surface layers are not the same as the middle layer. This structure is developed to produce flat boards on high-speed corrugating machines. The surface of the belt is twill weave to reduce the noise when high speed running on the machine,increase the friction coefficient.

Products Features:

double backer belt

Straight cut edge

Level surface, clean mark

Fasteners Cliper Steel

High Tensile strenght

Heat resistance

Good moisture absorption

Excellent air pemeability

stability dimension

Suitable for linear speed 200-260m/min

Low noise and high speed of operation

Long life time

Specifications:

Model:WSD/GS-9

Material:PET100%

Applt speed:260m/min.

Thickness:(9±0.3)mm

Wideth:(1200-2900)mm

Tension:60Mpa

Heat-resistance:under200℃,accept short time pressure

under150℃,accept long time pressure

Weight per unit:(7±0.3)kg/m2

Min. winding radius:R70mm

Air-permeability:1.95M3/M2

Life:14000h

Port::Xingang

Date of delivery:15-30days

Main Usage: The Solid Woven Polyester/Cotton Belt is one main special part of corrugated machine automatic production line. Its main function is to ensure that the board transportation and the rapid evaporation of the water in board.

Tel: 80772027

E-mail: troy.l(at)huataogroupcom

Website:3w.htwirebeltcom

Add: No.298,North Zhonghua Street, Shijiazhuang,Hebei,China

Huatao Wire Belt Factory
