450mm coil diameter Razor wire flat wrap coils as a clapped into a flat panel formation.

1.Flat wrap razor wire -Process :
A. Razor wire flat wrap coils are made of high tensile razor wire, clapped into a flat panel formation.

B.  coil to coil the space is fixed by clips , it is more safety and cannot be stretched like cross razor wire

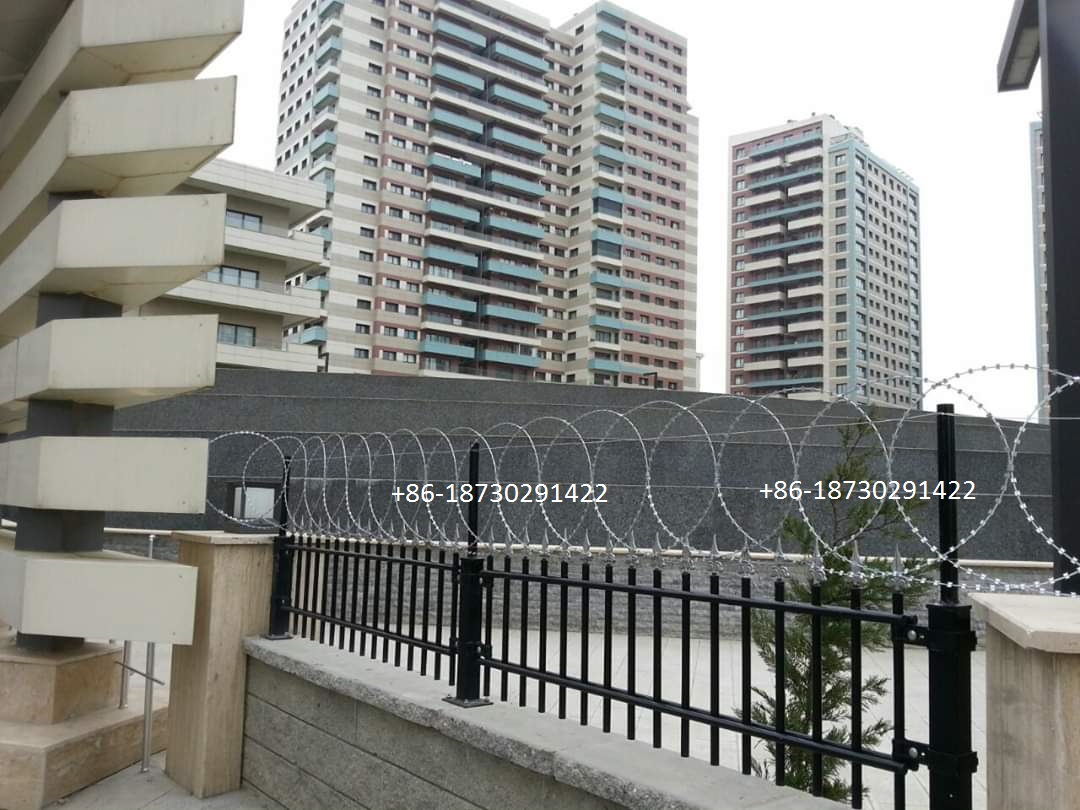

2.Flat wrap razor wire - install & application  :



Installed against the existing smooth wire mesh fence;

Fitted to the welded mesh fence;

Fitted by overlapping the fence mesh;

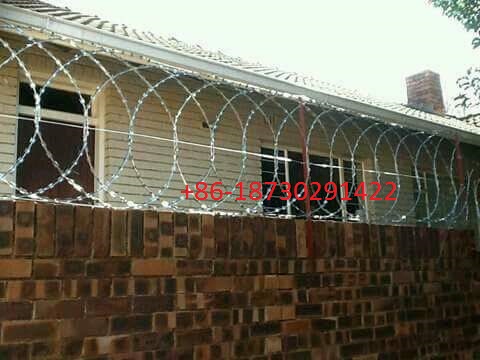

Installed to the brick wall directly.



3.Flat wrap razor wire - Adavantage:

• compare wth cross razor wire ,FLAT RAZOR WIRE increase the safety - because of fixed small coil to coil space & large coverage (cover area bigger )
• Flat wrap coils will substantially improve the effectiveness of the fence. Installed on this basis, innocent persons are protected from injury by the smooth wire mesh fence while the potential intruders will get frightened back.

4.Flat wrap razor wire - Balde shape choice :
A.BTO(10,12,18,22,28,30)

B. CBT-65  :

Model	Thickness	Wire Dia	Length	Width	spacing
BTO-10	0.5mm	2.5mm	12mm	13mm	26mm
BTO-12	0.5mm	2.5mm	12mm	15mm	26mm
BTO-18	0.5mm	2.5mm	18mm	15mm	33mm
BTO-22	0.5mm	2.5mm	22mm	15mm	34mm
BTO-28	0.5mm	2.5mm	28mm	15mm	34mm
BTO-30	0.5mm	2.5mm	30mm	18mm	34mm
CBT-60	0.6mm	2.5mm	60mm	32mm	96mm
CBT-65	0.6mm	2.5mm	65mm	21mm	100mm



5.Flat razor barbed wire specifications:

The Outside Diameter: 450mm / 600mm / 900mm Flat razor wire fence is also made of razor barbed wire, but the difference from welded razor wire fence is Flat razor wire fence connected razor wire by clips but the welded razor barbed through welding.

we can do 300mm , 450mm, 500mm ,600mm , 700mm , 900mm  and we like customerized for you .

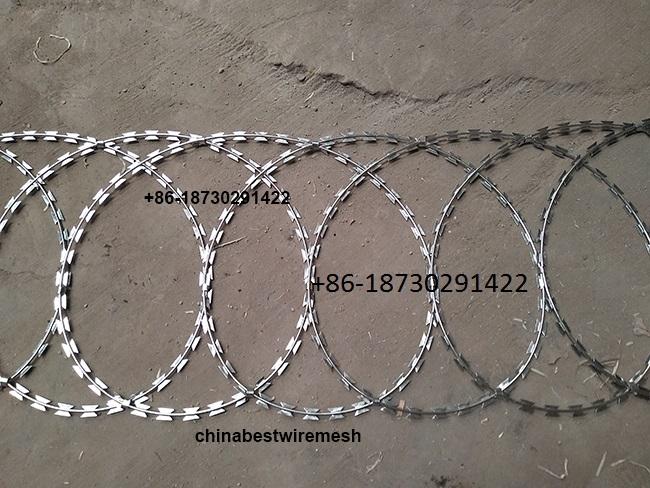

6.Flat wrap razor wire - show  :

Popular Balde is BTO 10 , BTO 12 ,BTO 22 , CBT 65 :

Polular Material : Hot dipped galvanized  & stainless steel ( 430 , 201,304 , 316L)



 A. show - BTO 22 ,450mm , Stainless steel 316L

B. show - BTO 22 ,500mm , Hot dipped galvanized



we also can do Bto -10 /22 , cbt -65 500mm, 600mm, 900mm

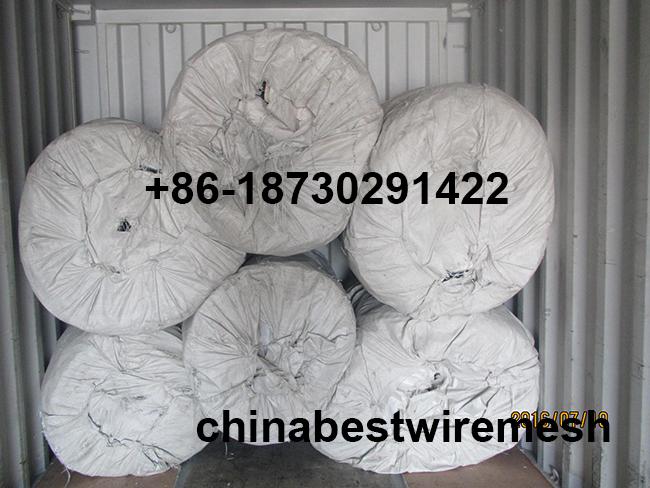

Flat wrap razor wire -Packing choice  :

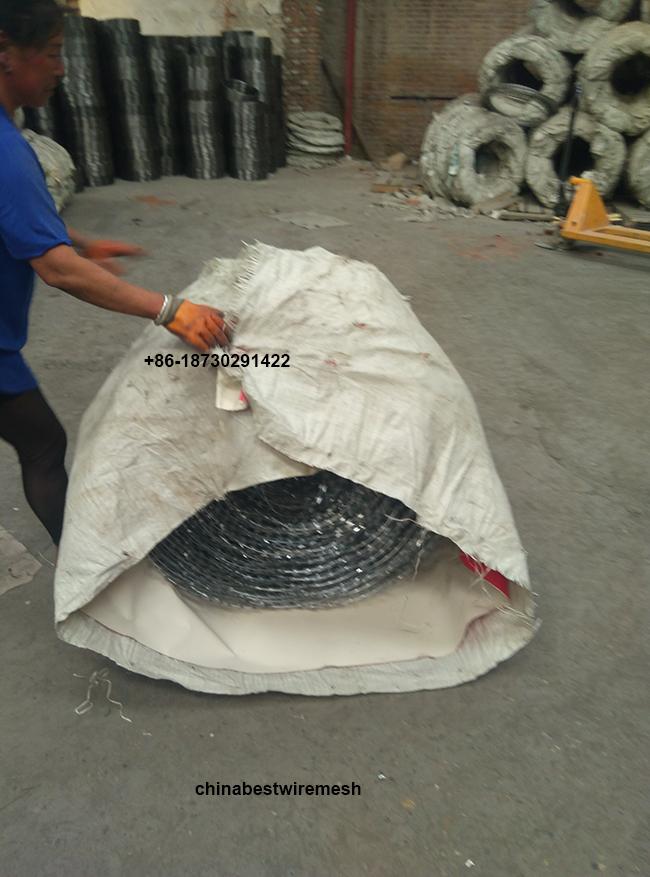

Compact 1-6 rolls into one pack , then wrap waterproof paper or woven bag  or pallet .



FLAT WRAP RAZOR WIRE -WELCOME YOUR INQUIRY .
