air slide fabric

Introduction :

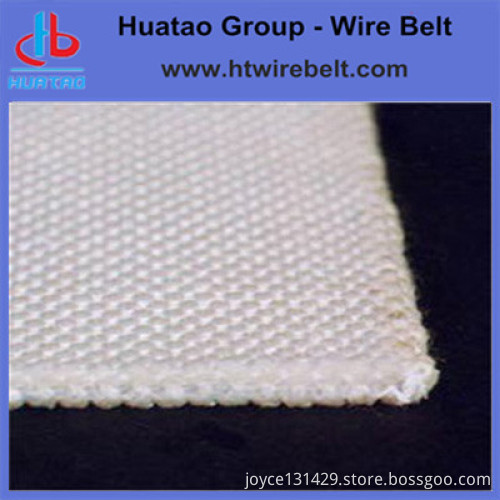

Air slide fabric is also named as air slide belt,conveyor belt,canvas cloth etc.It is woven by polyester yarn with durable and abrasion resistant,in 2-5 ply.Fix the air slide belt between material and air-flow box air flow cross the material and make the powder or particle fluidized under gas pressure, to achieve the purpose of conveying.

product range:3-10mm
temperature resistance:160
permeability:0.5-10
width:max 2600mm

Features:

1. Constant air permeability

2. High abrasion resistance

3. High tensile strength in warp and weft

4. High resistance to wear and degradation

5. Readily cut heat scalable so ease in fitting

6. Resistance to decay and rot prevents the formation of bacteria and fungus

Applications:

1. Cement industry:cement bulk cement trucks,boats;

2. Mining:alumina,lime,fly ash,phosphate;

3. Chemical industry:soda;

4. Power:fly ash,desulfurization;

5. Food industry:flour

Function

Powder moves on the fluidization conveyor over air slide fabrics.

The fluidization conveyor not have power parts.

Flow is achieved by an air flow through the air Slide fabrics that removes friction between powder and the air-permeating textile materials.

PP bag or wood box, standard export package

Air slide fabric is designed by our company. It is applicable to air oblique slot of powder stations of cement plants, air-filling case, homogenizing effort, and pneumatic power conveyance of cement in homogenizing houses, and it is also an indispensable part of power plants, chemical industry,metallurgical industry,bulk cement tank trucks, bulk cement tank ships and fixed cement tanks.
