woven corrugated belt

Woven middle speed corrugator belt:middle speed corrugator belt is 5-layer structure belt,each structure of the layer are the same,each layer has the same material,and the absorbent fiber is woven into the surface layer.The surface is straight line,this can guarantee correct gluing and fast drying of the board.

Strong woven middle speed corrugator belt:the loads on the edges of the corrugator belt are extremely high in corrugator systems with high production speeds,flat-surface pressure systems and frequent changes of paper width.up to 40%higher temperature and increased wear due to the belt running over heating plates and shoes,are not uncommon.in order to cope with this additional wear,the material which can resist high temperature and anti-abrasion are woven in to the edge of the belt.the width of the edge reinforcement is variable.it can be adjusted flexibly to meet the specific needs of the corrugating system.the woven-in edge reinforcement is an integral part of the belt and does not adversely affect either the running characteristics or the moisture regulating properties of the belt.

Woven high speed corrugator belt:Woven high speed corrugator belt was developed to transfer board and the rapid drying of the board.the structure and the quality fabric of the belt facilitates steam evaporation form the board.the belt is 3layer belt.the structure of two surface layer are not the sames as the middle layer.this structure is developed to produce flat boards on high-speed corrugating machines.the surface of the belt is twill,this reduces the noise while the belt running on the machines.the material of the two surface layer are not the same as middle,this can increase the friction coefficient.

Strong woven high speed corrugator belt:Strong woven high speed corrugator belt is a consistent development based on the proven woven high speed corrugator belt range,the strong woven speed corrugator belt is ideal for corrugating systems with high production speeds,even load systems and frequently changing paper widths.the woven-in edge reinforcement of aramid fibers reduces wear substantially and ensures a long service life.

Feature:high strength,heat resistance,good moisture absorption,excellent air perm ability,stability dimension,suitable for linear speed,long life time

Specification:

Material:100%PET synthetic fiber

Applet speed:100-300m/min

Thickness:9/10mm

Width:1400-3200mm

Heat resistance:180-200

Life time:1400h

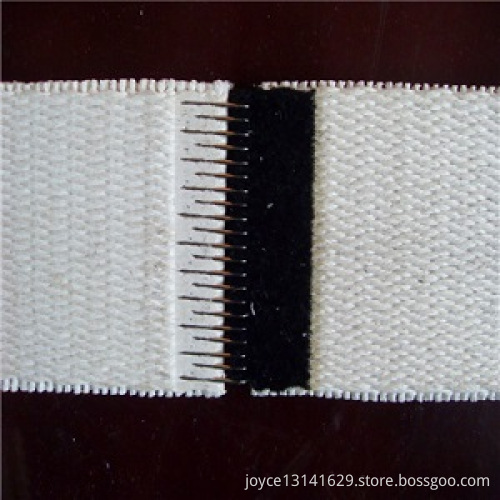

Joint:hot press and flocking joint.

Price:USD80-90

Application:Corrugated paper production line,Honeycomb Paperboard Factory ,carton factory
