China hydraulic motor

USD90

≥1 Piece/Pieces

Payment Type:: L/C, T/T, Western Union

Incoterm:: FOB

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 10 Days

Port:: Tianjin

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	3000 pieces/month
Supply Ability:	3000 pieces/month
Payment Type:	L/C,T/T,Western Union
Incoterm:	FOB
Port:	Tianjin

Product Description

Hanjiu is new leader in hydraulic supply in China. Items similar and interchangeable with Sauer Danfoss, M+S, Eaton Char-Lynn, Parker, Rexroth, Caproni, Casappa, Brevini, any many more.

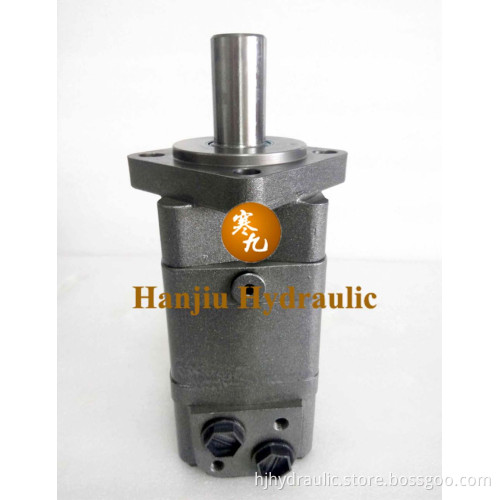

BMS series motor adapt the advanced Gerotor gear set design with disc distribution flow and high pressure. The unit can be supplied the individual variant in operating multifunction in accordance with requirement of applications.
Characteristic Features:
*Advanced manufacturing devices for the Gerotor gear set which use low pressure of start-up, provide smooth and reliable operation and high efficiency.
*The output shaft adapts in tapered roller bearings that permit high axial and radial forces. Can offer capacities of high pressure and high torque in the wide of applications.
*Advanced design in disc distribution flow, which can automatically compensate in operating with high volume efficiency and long life, provide smooth and reliable operation.

Order Code:

Code		Remarks
BMS BMSS
Displacement
80 100 125 160 200 250 315 375
Flange
E2	2-Ø13.5 Rhomb-flange Ø106.4,pilot Ø82.5×6.3	BMS
E4	4-Ø13.5 Rhomb-flange Ø106.4,pilot Ø82.5×6.3
F6	6-Ø13.5 Rhomb-flange Ø106.4,pilot Ø82.5×2.6
W	4-Ø13.5 Wheel-flange Ø160,pilot Ø125×8
E2B	2-Ø14.3 Rhomb-flange Ø146.05,pilot Ø101.6×9.4
SP	4-Ø11.5 Square-flange Ø106.4,pilot Ø82.5×6.3
D	4-Ø11 Circle-flange Ø125,pilot Ø100×6	BMSS
E	4-Ø13.5 Square-flange Ø127,pilot Ø101.6×6.3	BMSS
Output Shaft
A	Shaft Ø25 , parallel key 8×7×32	BMS
B	Shaft Ø32 , parallel key 10×8×45
D	Shaft Ø25.4 , parallel key6.35×6.35×25.4
G	Shaft Ø31.75,parallel key 7.96×7.96×31.75
F	Shaft Ø31.75,splined tooth 14-DP12/24
FD	Long Shaft Ø31.75,splined tooth 14-DP12/24
SL	shaft Ø34.85,Splined key 6-34.85×28.14×8.64
T1	Cone-shaft Ø35 ,parallel key B6×6×20
T3	Cone-shaftØ31.75,parallel key 7.96×7.96×31.75
S1	Shaft Ø25.4 ,splined tooth SAE 6B
I	Sub-shaft Ø22,splined tooth 13-DP16/32
Omit	Short shaft 12-DP12/24	BMSS
Port and Drain Port
D	G1/2 Manifold Mount 2-M10 , G1/4
M	M22×1.5 Manifold Mount 2-M10, M14×1.5
S	7/8-14UNF O-ring manifold 2-3/8-16, 7/16-20UNF
P	1/2-14NPTF manifold 2-3/8-16UNC, 7/16-20UNF
Rotation Direction
Omit	Standard
R	Opposite
Paint
00	No paint

Code		Remarks
BMS BMSS
Displacement
80 100 125 160 200 250 315 375
Flange
E2	2-Ø13.5 Rhomb-flange Ø106.4,pilot Ø82.5×6.3	BMS
E4	4-Ø13.5 Rhomb-flange Ø106.4,pilot Ø82.5×6.3
F6	6-Ø13.5 Rhomb-flange Ø106.4,pilot Ø82.5×2.6
W	4-Ø13.5 Wheel-flange Ø160,pilot Ø125×8
E2B	2-Ø14.3 Rhomb-flange Ø146.05,pilot Ø101.6×9.4
SP	4-Ø11.5 Square-flange Ø106.4,pilot Ø82.5×6.3
D	4-Ø11 Circle-flange Ø125,pilot Ø100×6	BMSS
E	4-Ø13.5 Square-flange Ø127,pilot Ø101.6×6.3
Output Shaft
A	Shaft Ø25 , parallel key 8×7×32	BMS
B	Shaft Ø32 , parallel key 10×8×45
D	Shaft Ø25.4 , parallel key6.35×6.35×25.4
G	Shaft Ø31.75,parallel key 7.96×7.96×31.75
F	Shaft Ø31.75,splined tooth 14-DP12/24
FD	Long Shaft Ø31.75,splined tooth 14-DP12/24
SL	shaft Ø34.85,Splined key 6-34.85×28.14×8.64
T1	Cone-shaft Ø35 ,parallel key B6×6×20
T3	Cone-shaftØ31.75,parallel key 7.96×7.96×31.75
S1	Shaft Ø25.4 ,splined tooth SAE 6B
I	Sub-shaft Ø22,splined tooth 13-DP16/32
Omit	Short shaft 12-DP12/24	BMSS
Port and Drain Port
D	G1/2 Manifold Mount 2-M10 , G1/4
M	M22×1.5 Manifold Mount 2-M10, M14×1.5
S	7/8-14UNF O-ring manifold 2-3/8-16, 7/16-20UNF
P	1/2-14NPTF manifold 2-3/8-16UNC, 7/16-20UNF
Rotation Direction
Omit	Standard
R	Opposite
Paint
00	No paint
Omit	Blue
B	Black
S	Silver grey
Unusually Function
Omit	Standard
LL	Low Leakage
F	Free Running
LS	Low Speed
