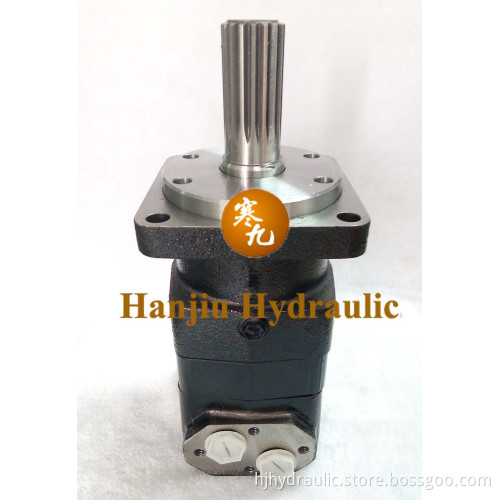

BMT Hydraulic Motor

BMT series motor adapt the advanced Gerotor gear set design with disc distribution flow and high pressure. The unit can be supplied the individual variant in operating multifunction in accordance with requirement of applications.
Characteristic Features:
  *Advanced manufacturing devices for the Gerotor gear set, which use low pressure of start-up, provide smooth and reliable
operation and high efficiency.
    *The output shaft adapts in tapered roller bearings that permit high axial and radial forces. Can offer capacities of high pressure and high torque in the wide of applications.
   *Advanced design in disc distribution flow, which can automatically compensate in operating with high volume efficiency and long life, provide smooth and reliable operation.

Order Code:

 Code

Remarks

BMT
BMTS

 Displacement

160
200
250
315
400
500
630
800

 Flange

4

4-Ø14 Square-flangeØ160,pilotØ125×9

BMT

K6

4-Ø14.5Square-flangeØ162,pilotØ127×9

W

4-Ø18 Wheel-flangeØ200,pilotØ160×7

D

4-Ø14 Circle-flange Ø160,pilot Ø125×8

BMTS

E

4-Ø14.5 Square-flange Ø162, pilot Ø127×10

 Output Shaft

M

Shaft Ø40,parallel key 12×8×70

BMT

G

Shaft Ø38.1,parallel key 9.52×9.52×57.15

F

Shaft Ø38.1,splined tooth 17-DP12/24

FD

Shaft Ø38.1,splined tooth 17-DP12/24

T

Cone-shaft 1:10 Ø45,parallel key B12×8×28

T1

Cone-shaft 1:8 Ø45,parallel key 11.13×11.13×31.75

SL

shaft Ø34.85,Splined key,Splined key 6-34.85×28.14×8.64

G1

shaftØ31.75,parallel key 7.96×7.96×40

F1

Shaft Ø31.75,splined tooth 14-DP12/24

Omit

Short shaft 16-DP12/24

BMTS

 Port and Drain Port

D

G3/4 Manifold Mount,4-M10 , G1/4

M

M27×2 Manifold Mount,4-M10, M14×1.5

S

1-1/16-12UN O-ring, 9/16-18UNF

S1

1-1/16-12UN O-ring, 7/16-20UNF

G

G3/4,G1/4

M3

M27×2,M14×1.5

 Rotation Direction

Omit

Standard

R

Opposite

 Paint

00

No paint

Omit

Blue

B

Black

S

Silver grey

 Unusually Function

Omit

Standard

LL

Low Leakage

F

Free Running

LS

Low Speed
