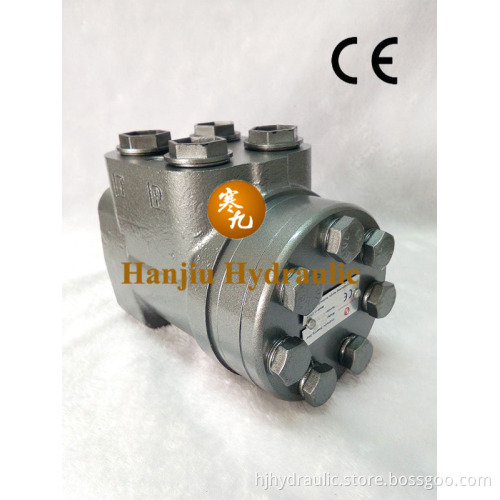

101S Hydraulic Steering Unit For Massey Ferguson Tractor



101S series hydraulic steering control unit

1. The same function of the 101 series
2. Including integrated valve (relief valve and checkproof valve)
3. Replace Danfoss (ospc), M+S (HKU/4) series.

4.101S Hydraulic steering unit is widely used in the steering control system

 such as the steering system of many kinds of industrial and agricultural

mobile machinery forklift,loader,roadroller,tractor,comebine harvester, etc.

 5.We produce the products match with the OEM number of all machines.




Parameters	Series 101S-*-***-**-*
Function code	1,2,4							1,4
Displacement (mL/r)	50	63	80	100	125	160	200	250	280	315	400
Rated Flow (L/min)	5	6	8	10	12.5	16	20	25	28	32	40
Max.input pressure(Mpa)	16
Relief Valve Pressure Settings ( MPa)	06,07,08,10,12,14,15,16
Shock Valve Pressure Settings ( MPa)	12,13,14,16,18,20,21,22
Max.cont.back pressure	2.5
Weight(kg)	5.75	5.81	5.89	5.96	6.1	6.3	6.5	6.73	6.91	7.1	7.5
Dimension L (mm)	130	132	134	137	140	145	150	156	161	166	176




Hydraulic steering unit applications:

Construction Machinery

Agriculture Machinery

Heavy-Duty Equipment

Forestry Machinery

Mining Equipment
