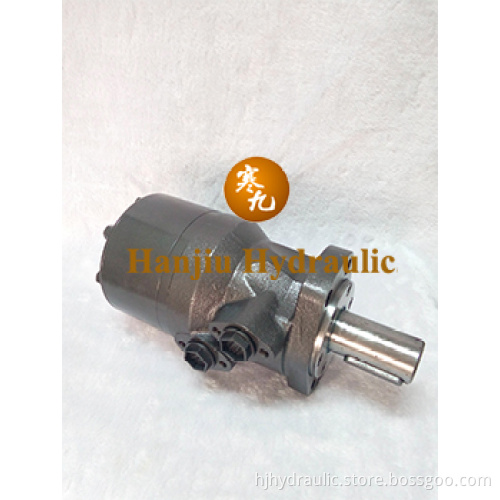

Hydraulic Orbit Motor BMH:
*Advanced manufacturing devices for the Gerolor gear set, which use low pressure of start-up,provide smooth, reliable operation and high efficiency.
*Shaft seal can bear high pressure of back and the motor can be used in parallel or series.
*Special design in the driver-linker and prolong operating life.
*Special design for distribution system can meet the requirement of low noise of unit.
*Compact volume and easy installation
OMH hydraulic motor Main specifiction:
| Type |
BMH 200 |
BMH 250 |
BMH 315 |
BMH 400 |
BMH 500 |
|
|
Displacement (cc/rev) |
203.2 | 255.9 | 316.5 | 406.4 | 489.2 | |
|
Max torque (n.m) |
cont | 510 | 621 | 740 | 850 | 830 |
|
|
int | 439 | 348 | 282 | 220 | 184 |
|
Max pressure (mpa) |
cont | 17.5 | 17.5 | 17.5 | 15.5 | 12.5 |
|
|
int | 20 | 20 | 20 | 19 | 16 |
|
Max speed rate (rpm) |
cont | 366 | 290 | 236 | 183 | 155 |
|
|
int | 439 | 348 | 282 | 220 | 184 |
|
Max flow (L/min) |
cont | 75 | 75 | 75 | 75 | 75 |
|
|
int | 90 | 90 | 90 | 90 | 90 |
|
Weight(kg)
|
10.5 | 11 | 11.5 | 12.3 | 13.0 | |
-
