Product Description

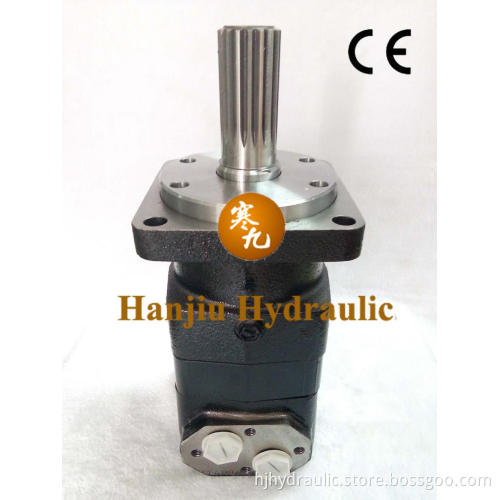

Hydraulic orbit motor BMT

BMT series motor adapt the advanced Gerotor gear set design with disc distribution flow and high pressure. The unit can be supplied the individual variant in operating multifunction in accordance with requirement of applications.
Characteristic Features:
*Advanced manufacturing devices for the Gerotor gear set, which use low pressure of start-up, provide smooth and reliable
operation and high efficiency.
*The output shaft adapts in tapered roller bearings that permit high axial and radial forces. Can offer capacities of high pressure and high torque in the wide of applications.
*Advanced design in disc distribution flow, which can automatically compensate in operating with high volume efficiency and long life, provide smooth and reliable operation.

Order Code:

Code		Remarks
BMT BMTS
Displacement
160 200 250 315 400 500 630 800
Flange
4	4-Ø14 Square-flangeØ160,pilotØ125×9	BMT
K6	4-Ø14.5Square-flangeØ162,pilotØ127×9
W	4-Ø18 Wheel-flangeØ200,pilotØ160×7
D	4-Ø14 Circle-flange Ø160,pilot Ø125×8	BMTS
E	4-Ø14.5 Square-flange Ø162, pilot Ø127×10
Output Shaft
M	Shaft Ø40,parallel key 12×8×70	BMT
G	Shaft Ø38.1,parallel key 9.52×9.52×57.15
F	Shaft Ø38.1,splined tooth 17-DP12/24
FD	Shaft Ø38.1,splined tooth 17-DP12/24
T	Cone-shaft 1:10 Ø45,parallel key B12×8×28
T1	Cone-shaft 1:8 Ø45,parallel key 11.13×11.13×31.75
SL	shaft Ø34.85,Splined key,Splined key 6-34.85×28.14×8.64
G1	shaftØ31.75,parallel key 7.96×7.96×40
F1	Shaft Ø31.75,splined tooth 14-DP12/24
Omit	Short shaft 16-DP12/24	BMTS
Port and Drain Port
D	G3/4 Manifold Mount,4-M10 , G1/4
M	M27×2 Manifold Mount,4-M10, M14×1.5
S	1-1/16-12UN O-ring, 9/16-18UNF
S1	1-1/16-12UN O-ring, 7/16-20UNF
G	G3/4,G1/4
M3	M27×2,M14×1.5
Rotation Direction
Omit	Standard
R	Opposite
Paint
00	No paint
Omit	Blue
B	Black
S	Silver grey
Unusually Function
Omit	Standard
LL	Low Leakage
F	Free Running
LS	Low Speed

Main Specifications:

Type		BMT 160	BMT 200	BMT 230	BMT 250	BMT 315	BMT 400	BMT 500	BMT 630	BMT 800
Geometric displacement (cm3 /rev.)		161.1	201.4	232.5	251.8	326.3	410.9	523.6	629.1	801.8
Max. speed (rpm)	cont.	625	625	536	500	380	305	240	196	154
Max. speed (rpm)	int.	780	750	643	600	460	365	285	233	185
Max. torque (N·m)	cont.	470	590	670	730	950	1080	1220	1318	1464
	int.	560	710	821	880	1140	1260	1370	1498	1520
	peak	669	838	958	1036	1346.3	1450.3	1643.8	1618.8	1665
Max. output (kW)	cont.	27.7	34.9	34.7	34.5	34.9	31.2	28.8	25.3	22.2
Max. output (kW)	int.	32	40	40	40	40	35	35	27.5	26.8
Max. pressure drop (MPa)	cont.	20	20	20	20	20	18	16	14	12.5
	int.	24	24	24	24	24	21	18	16	13
	peak	28	28	28	28	28	24	21	19	16
Max. flow (L/min)	cont.	100	125	125	125	125	125	125	125	125
Max. flow (L/min)	int.	125	150	150	150	150	150	150	150	150
Max. inlet pressure (MPa)	cont.	21	21	21	21	21	21	21	21	21
	int.	25	25	25	25	25	25	25	25	25
	peak	30	30	30	30	30	30	30	30	30
Weight (kg)		19.5	20	20.4	20.5	21	22	23	24	25

* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.
