Mobile Telescopic Cylindrical Aerial Platform Ladder, Lift Platform

  Mobile Telescopic Cylindrical Aerial Platform Ladder, Lift Platform   Discover a more productive way to work     Telescopic Cylindrical Aerial Work Platform, including two base models SCA single ladder and SCB dual ladder series. For ease of storage,Tilt back type is available. Platform height ranges from 6m to 30m. Lift capacity from 120kg to 200kg. High duty strength manganese steel makes your work safe and stable. Superior lifting strength can reach more higher.     It is widely used in factories, hotel, shopping centers, station, airport, workshops, hospitals, warehouses for maintenance, cleaning etc.    Specification

Model	Platform Height (m)	Overall Dimensions L x W x H (mm)	Platform Dimension L x W (mm)	Lift Capacity (kg)	Rising Speed (m/s)	Anti-wind (Level)	Power Source (v)	Machine Weight (kg)
SCA-06	6	1020x920x1800	750x750	200	0.054	5	220	480
SCA-08	8	1160x920x2050	800x800	200	0.044	5	220	580
SCA-10	10	1160x1000x2170	800x800	200	0.04	5	220	650
SCA-12	12	1400x1230x2230	800x800	200	0.03	5	220	900
SCA-14	14	1400x1230x2300	800x800	200	0.028	5	220	1075
SCA-15	15	1400x1230x2400	800x800	200	0.026	5	220	1200

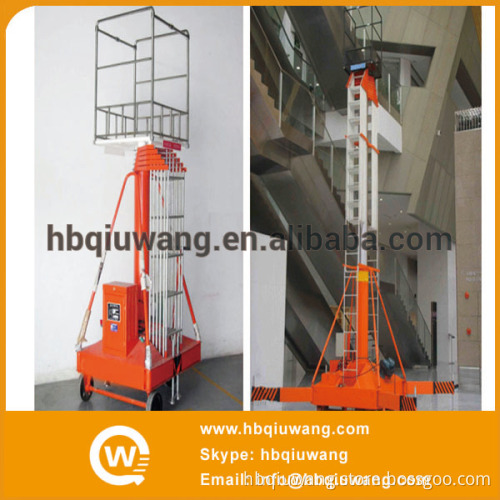

    Feature 1. High working frequency 2.Controlled both on platform and ground. Mini remote controller is available. 3. Antiskid deck is adapted to the floor of the platform. 4.Safety device for overload 5.Safety device for emergency power off  6.Safety device for breakage of hydraulic pipelines7.Ease of storage thanks to its compact structure.   Machine Picture   Other Types  For Your Reference   Warranty    A comprehensive 24 months structrual and components warranty is offered for all QW platform. Cost price spare parts offered within 15 years.   Note Subject to the type of work, a great variety of the lift can be used. Since no two jobs are the same, all the technical data can be changed to suit your project.       Contact Us      Tel:      0086 311 80838155  Fax:     0086 311 87162908     ( We are at service in 24 hours, 365 days)
