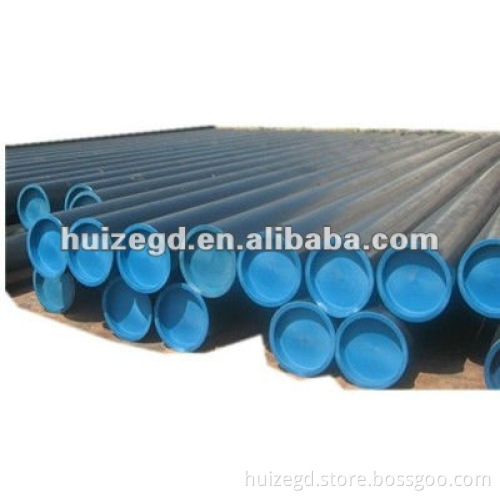

ASTM A106/A53/API5L Gr.B large diameter seamless steel pipe structure use
- Delivery Time:
- 25 Days
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Hebei, China (Mainland) |
|---|
Product Description
Product Description
Specifications a)Size:16mm-200mm
b)Thick:SCH10-XXS
c)Material:CS ,AS,SS
d)Standard:ANSI,JIS,DIN.BS
e)Base material:TPCO
SHIJIAZHUANG HUIZE PIPE FITTING CO.,LTD Address NO.150 ,Yuhua District ,Shijiazhuang,China Tel 86-311-66619538 Fax 86-311-66619527 Email salesbai(at)huizegd.cn Web Skype ID brenda5469
b)Thick:SCH10-XXS
c)Material:CS ,AS,SS
d)Standard:ANSI,JIS,DIN.BS
e)Base material:TPCO
| Products | seamless steel pipe for structure and fluid use | ||||||
| Standards | ANSI B36.10/36.10M,ANSI B36.19 | ||||||
| Grades | API 5L /A106/A53 Gr.B | ||||||
| Chemical Composition (%) | C | Si | Mn | S | P | Cr | |
| 0.17-0.24 | 0.17-0.37 | 0.35-0.65 | 0.045 | ≤0.045 | 0.7-1.0 | ||
| Physical properties | Tensile Strength(MPa) ≥410 Yield Strength ≥ 245 Elongation ≥ 25% | ||||||
| Process Methods | Cold Drawn | ||||||
| Outer Diameter(OD) | 1/2"-24" | ||||||
| Wall Thickness(WT) | SCH10S-XXS | ||||||
| Length: | 5.8m, 8m, 12m or at random | ||||||
| We can also supply Non-Standard pipes/tubes | |||||||
| Packing | Standard seaworthy packing | ||||||
| Minimum Order Quantity | 5 Metric Ton for SMLS | ||||||
| Terms Of Payment | T/T in advance or irrevocable L/C at sight | ||||||
| Delivery Conditions | TINJIN | ||||||
| Delivery Time | Min 15 days After Received the Payments | ||||||
