380V voltage razor barbed wire machine

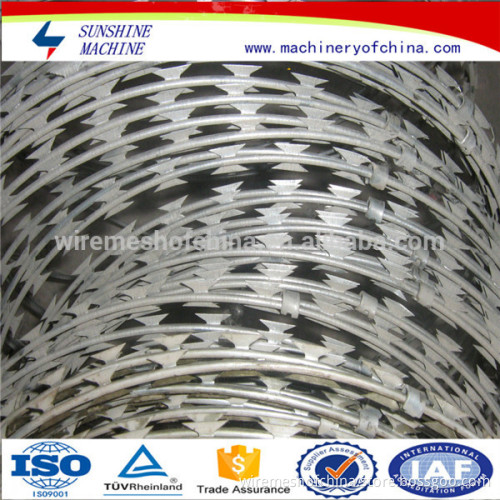

380V voltage razor barbed wire machine   Product Description Razor barbed netting machine, also named as razor barbed wire machine, is specially used to manufacture razor barbed wires.It mainly consists of punching razor strip machine,coiling wire machine and mould.The punching razor strip machine is used as punching the outside razor strip of razor wire .The coiling wire machine is used as coiling the wire into the razor strip to form the finished razor wire .The mould decide the razor length ,width the space.   The finished product mainly used for safe isolation of military facilities, communications stations, power transformer substation, and territorial prison, dump site, community protection, school, factories, and farms.   Punching Razor Strip Machine

Overal Diamension	L*W*H: 1200MMX1000MMX1900MM
Rated Voltage	380V
Power	2.2KW
Producing speed	220-280m/h
Weight	1500KG

    Coiling wire machine

Overal Diamension	L*W*H  1100mmx750mmx1200mm
Rated Voltage	380V
Power	1.5kw
Producing speed	80kg/h
Weight	300kg

      Specification of the razor wire the machine could produce

Reference Number	Thickness	Wire Dia	Barb Length	Barb Width	Barb Spacing
BTO-10	0.5±0.05	2.5±0.1	10±1	13±1	26±1
BTO-12	0.5±0.05	2.5±0.1	12±1	15±1	26±1
BTO-18	0.5±0.05	2.5±0.1	18±1	15±1	33±1
BTO-22	0.5±0.05	2.5±0.1	22±1	15±1	34±1
BTO-28	0.5±0.05	2.5	28	15	45±1
BTO-30	0.5±0.05	2.5	30	18	45±1
CBT-60	0.6±0.05	2.5±0.1	60±2	32±1	100±2
CBT-65	0.6±0.05	2.5±0.1	65±2	21±1	100±2

      Our services   1.Maintenance period: one year
If the buyers need, we can send our technical staff to the buyers’ place to debug the machine and providing the training in 30 days after the machines arrive at the destination port.
2.The debugging fees: free
3.After the maintenance period: If you need the machine parts,we will provide it as our cost. If you need the technicians, we will assign the expertised staff to your company. And the fees ,such as round-trip tickets, accomodation etc, are all in your account.   Packing     FAQ   1. How about the warranty?   With one year guarantee, and the good after-sale service. We can arrange our worker to your country for the installation or we can record the whole process of the installation for your reference.or as your special requirements which are also welcome to discuss.   2. How about the payment?   30% T/T in advance, 70% payable against the copy of the B/L. or L/C is also acceptable.

3. How about the delivery time?   Within 25 days after recive the advance payment.     About us:   HEBEI SUNSHINE INDUSTRIAL CO.,LTD is a professional manufacturer of varous of mesh machines with well-equipped facilities and strong technical force. With good quality, reasonable prices and stylish designs, our machines includes chain link fence machine, gabion mesh machine, welded mesh machine, wire drawing machine etc. Our SY machines are widely recognized and trusted by users and can meet continuously changing economic and social needs. We welcome new and old customers  for future business relationships and mutual success! Your satisfaction is out pursuit
