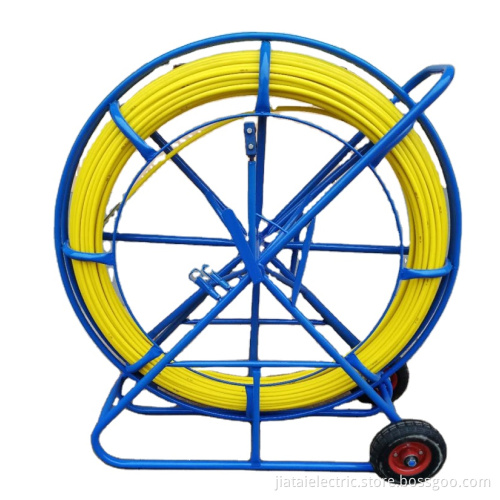

Fiberglass Detectable Duct Rodder for Cable Threading

Fiberglass Detectable Duct Rodder for Cable Threading

$22.80

1-49 set
$21.80

50-99 set
$20.80

100-199 set
$19.80

≥200 set

Min. Order:: 1 set

Min. Order:: 1 set

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Supply Ability:	10000 Piece/Pieces per Month
Payment Type:	L/C,D/P,D/A,T/T

Product Description

The duct rodder is mainly made of glass fiber and high strength resin through high temperature pultrusion into FRP rods, which cover it with HDPE to make the surface smooth and enhance wear resistance, aging resistance, acid and alkali resistance. High-strength FRP rods have very high tensile strength while maintaining flexible bending performance.

The duct rodder is equipped with steel frame with wheels or without wheels. The color of FRP rod and steel frame both can be customized.

This product is widely used in pulling the guiding ropes in pipelines, as well as laying communication cables, power cables, network cables, video cables, etc. It is easily to operate to greatly improve the working efficiency.

Diameter of Rod	φ4.5mm,φ6mm,φ8mm,φ9mm,φ10mm,φ11mm,φ12mm, φ13mm,φ14mm, φ15mm,φ16mm
Length of Rod	50m ~ 500m (the length can be customized)
Bending Radius	330mm
Fiber Density	210kg/m
Fracture Tension	4200kg
Application Temperature	-40℃ to +80℃
