China-made High Voltage Electroscope (0.4kV~500kV)

China-made High Voltage Electroscope (0.4kV~500kV)

$50.00 - $100.00/piece

Min. Order:: 10 piece

Min. Order:: 10 piece

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Western Union,T/T,MoneyGram

Product Description

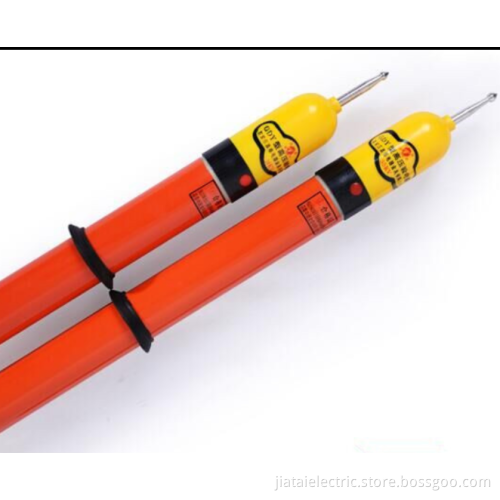

High Voltage Electroscope (0.4kv~500kv) from China

The High voltage electroscope is the necessary security tools for electric system and industrial and mining enterprise electricity work.It is used for testing 0.1 KV-750 KV lines or equipment whether running with power frequency voltage, ensure the personal safety of lineman

Product characteristics:
Using epoxy resin as materials, so it is ultra light, ultra high voltage,high strength.

Applications: Used for testing the powre frequency voltage on alternating high voltage line and electrical equipment. Function of audible and visual alarm on the safe side.

Specification: 0.4kv, 10kv, 35kv,110kv,220kv,500kv. We could produce them as your requirement.

Model	Voltage (kv)	Extended Length (mm)	Retracted Length (mm)	Effective Insulated Distance (mm)	Weight(kg)(including packing)	Frequency
JTYD-04	0.4kv	950	260	700		50Hz±1Hz
JTYD-10	10kv	1000	400	860	1.1	50Hz±1Hz
JTYD-35	35kv	1500	500	1100	1.2	50Hz±1Hz
JTYD-110	110kv	2000	600	1440	2.0	50Hz±1Hz
JTYD-220	220kv	3000	800	2440	2.1	50Hz±1Hz
JTYD-500	500kv	8000	1650	6000	2.5	50Hz±1Hz
