High Voltage Detectors with Sound and Alarm Fiberglass Electroscope

High Voltage Detectors with Sound and Alarm Fiberglass Electroscope

$12.00

10-99 piece
$10.50

≥100 piece

Min. Order:: 1 piece

Min. Order:: 1 piece

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	L/C,D/P,D/A

Product Description

High Voltage Detectors with Sound and Alarm Fiberglass Electroscope

Product Description

1.High pressure electroscope
2.Stable performance
4.Easy to operate
5.Ultra-light,high strengt

The characteristics of the high-pressure electroscope

By testing through the electroscope of stray capacitance of electric current, test equipment, the line is charged.The product of each part is firm and reliable connection, indicator seal in good condition, surface smooth, level off, the signs on the indicator are complete.Insulating rod clean, smooth surface.Easy to carry, check electrical high sensitivity, without strong electric field interference, a whole circuit self-checking function, long standby time, etc.

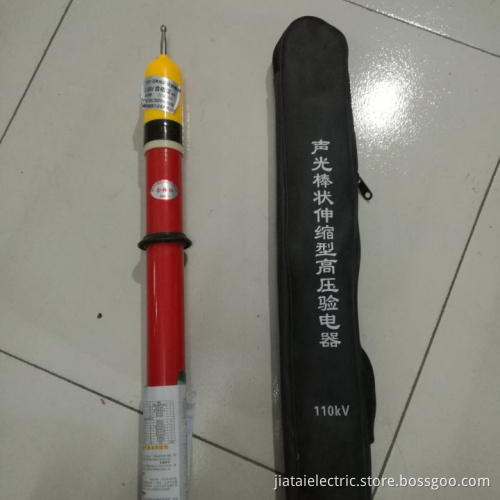

High voltage electroscope

The High voltage electroscope is the necessary security tools for electric system and industrial and mining enterprise electricity work.It is used for testing 0.1 KV-750 KV lines or equipment whether running with power frequency voltage, ensure the personal safety of lineman

Model	Voltage (kv)	Extended Length (mm)	Retracted Length (mm)	Effective Insulated Distance (mm)	Weight(kg)(including packing)	Frequency
JTYD-04	0.4kv	950	260	700		50Hz±1Hz
JTYD-10	10kv	1000	400	860	1.1	50Hz±1Hz
JTYD-35	35kv	1500	500	1100	1.2	50Hz±1Hz
JTYD-110	110kv	2000	600	1440	2.0	50Hz±1Hz
JTYD-220	220kv	3000	800	2440	2.1	50Hz±1Hz
JTYD-500	500kv	8000	1650	6000	2.5	50Hz±1Hz

Our Services

High Voltage Detectors with sound and alarm fiberglass electroscope
