High Quality Industrial Epoxy Wire Mesh Support

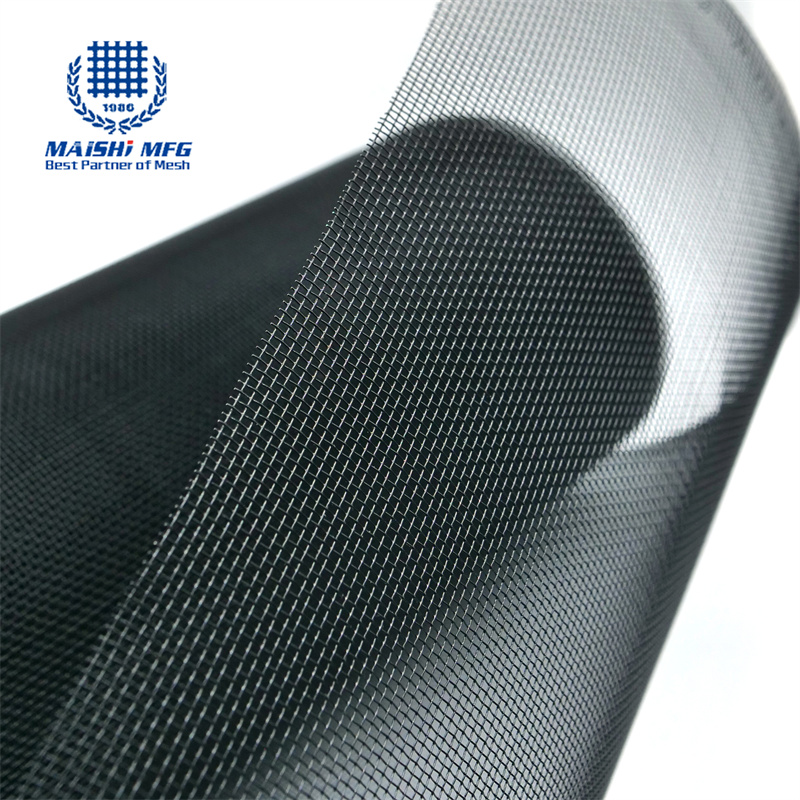

Epoxy coated filter wire mesh is mainly composed of plain steel wires woven together and coated with quality epoxy resin powder through the electrostatic spraying process to make this material resistant to corrosion and acids. The epoxy-coated wire mesh is usually used as a support layer for the filtering which replacing galvanized wire mesh and is ideal due to the stability of the structure as well as its affordability, it's the main part of filters.

Production Description

The specifications of MAISHI frequently produced and stocked products are as follows:

Quality standard: ASTM

Material: CCL epoxy annealed 1006 alloy, Stainless steel, Aluminum 5052 etc.

Color: Black/charcoal epoxy

Mesh size:18x14mesh(hole size 1.4mmx1.8mm), 24x22mesh(hole size 0.8mmx1.0mm),28x24mesh(hole size 0.7mmx0.8mm)

Wire diameter: 0.008inch(0.20mm)

Width: 50mm(2inches)-1500mm(60inches)

Length: 30m(100ft)-700m(2000ft)

MAISHI can also produce other materials (such as stainless steel, aluminum) and other colors (such as dark gray) epoxy coated steel screening according to customer requirements.

Characteristics

1. Even and square hole

2. Not easy to loosen and deform, the supporting force is strengthened

3. Soft mesh surface and easy to be shaped.

4. Different colors of powder can be coated.

5. Even and consistent color.

Application

This product can be used for pleated filter element supports, which can be used in hydraulic systems as well as in the automotive industry, such as hydraulic filters, air filters, etc.

Company profile

MAISHI is a wire mesh manufacturer in China with more than 30 years’ experience, and we started production of epoxy coated screening in 2017. After more than 3 years of continuous improvement of the production process, from the beginning of the longest 100 meters (about 100yards) per roll, we can achieve 700 meters (about770yards) per roll till Apr 2022. It helps all of our partners improve the production efficiency of hydraulic or air filters. MAISHI wire mesh has been continuously developing, and our next goal is to increase the roll length to 1000 meters (about 1000yards).
