double loop fence(factory)

double loop fence(factory)              1. Panel:   The double wire panel system is a flat panel, constructed from twin wire 6mm/8 mm diameter horizontal wires either side of a 4mm/5 mm/6mm diameter vertical wire creating a strong rigid fence when fitted to a RHS/SHS post.   The panels up to 2000mm, 2500 mm,3000mm wide and with heights ranging from 630 mm to 2500 mm.   2. Mesh size:                            50×100 mm, 50×200 mm, 55x200mm,100×200 mm ,etc.     3. Standard fence specification:

Mesh size	WIRE THICKNESS	Coating	Panel Width	Panel Height	Post Height
50x100 mm  50x200mm 55x200mm  100x200mm	1xø5 mm/1x6mm Vertical wire & 2xø6 mm Horizontal wire 0r 1xø5 mm/1x6mm Vertical wire & 2xø8 mm Horizontal wire	Galvanized and Electrostatic Polyester Coated	2.50 m	0.63 m	1.10m
				0.83 m	1.30m
				1.03 m	1.50m
				1.23 m	1.70m
				1.43 m	1.90m
				1.63 m	2.10m
				1.83 m	2.40m
				2.03 m	2.60m
				2.23 m	2.80m
				2.43 m	3.00m

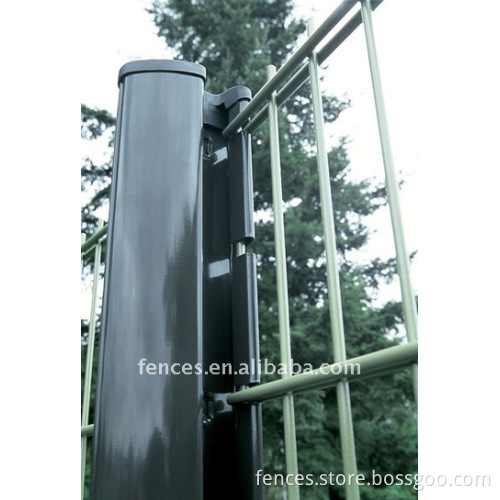

    4. Fence post:                            1)  SHS post: 50x50mm,60x60mm,                            2)    RHS post: 60x40mm,80x40mm,                            3)   Peach post:50x70mm,60x90mm,70x100mm   5. Fence finish                             Hot dipped galvanized
                            Galvanized and polyester powder spraying coated                            Standard colours: RAL 6005 green, 9005 black,5010 blue, 3000 red, 9010 white
                           Other colours: All other RAL colours available.   6. Fence application:                                         Schools ,Hospitals ,General Industrial                                       General Commercial ,Prestige ,Utilities ,Housing .   7. Fence packing:       1) pallet         2)  bulk in container.
