QYM- 3D High Security Fence

Specifications 1.QYM Brand High Security Fence

2.ISO9001:2008

3.Reliable Fence Supplier

4.Professional Fence Manufacturer

5.358 Anti Climb

QYM- High Security Fence

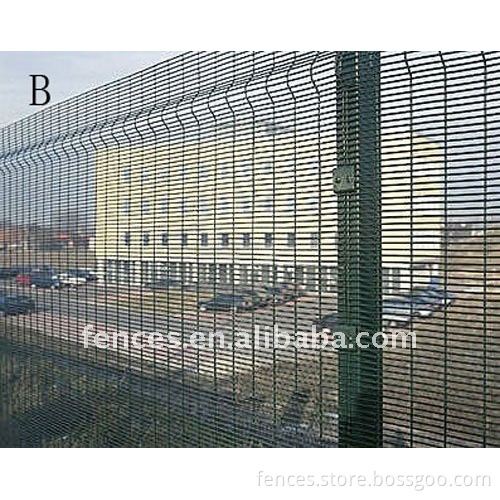

  QYM- high security fencing systerm is well known in the world as an anti-climb & anti-cut through barrier, while providing the lowest level of visual impact to the surroundings.The panels are welded with high quality carbon steel wires. It is designed to give attractive, long lasting and secure perimeter protection for industrial and commercial properties, public utilities, and it is really suited for electronic alarm and detection systems - no blind spots for CCTV. It is also a good choice for Military, airports, secure units and prisons.   Panel-Type B(3D View)

Mesh	Wire Thickness	Surface Treatment	Folds NOS	Panel Width	Height
76.2x12.7 mm	Horizontal wire:3.0 ,3.5, 4.0mm Vertical wire :4.0mm	Galvanized and  Electrostatic polyester coated or Hot dipped galvanized	3	2.50m Or 2.20m	1800mm
			3		2000mm
			4		2100mm
			4		2200mm
			4		2400mm
			5		2500mm
			6		3000mm

*Weld strength: - 75% of the minimum tensile strength of the wire; Tensile range 540-690 N/m2

Post -Type A (RHS  Pipe)

Profile	Wall Thickness	Surface Treatment	Length	Rainhat
80x60mm	3.00mm	Galvanized and  Electrostatic polyester  powder coated or Hot dipped galvanized	On the basis of panel height	Plastic or Metal

  High Security Fence-Variations
In addition to the standard posts, many variations are available
to accommodate site requirements:
• alternative sections
• wall fixing plates, cranked posts or base plated
• cranked or straight extensions for barbed or razor wire
• cranked panels
• concrete or wooden posts with through-bolts and fixing plates

High Security Fence-Fitttings
Metal claws or flat bar
