High Security System

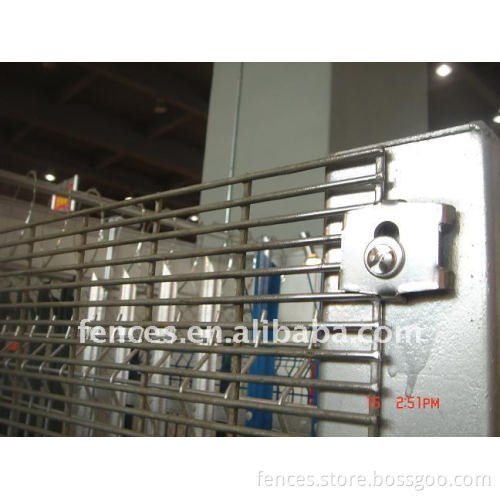

Qianye Metal           QYM-High Security Fence   QYM- high security fencing systerm is well known in the world as an anti-climb & anti-cut through barrier, while providing the lowest level of visual impact to the surroundings.The panels are welded with high quality carbon steel wires. It is designed to give attractive, long lasting and secure perimeter protection for industrial and commercial properties, public utilities, and it is really suited for electronic alarm and detection systems - no blind spots for CCTV. It is also a good choice for Military, airports, secure units and prisons.

Panel-Type A(2D View)

Mesh	Wire Thickness	Surface Treatment	Panel Width	Height
76.2x12.7 mm	Horizontal wire:3.0 ,3.5,4.0 mmVertical wire :4.0mm	Galvanized and Electrostatic polyester coated or Hot dipped galvanized	2.50mOr 2.20m	1800mm
				2000mm
				2100mm
				2200mm
				2400mm
				2500mm
				3000mm

*Weld strength: - 75% of the minimum tensile strength of the wire; Tensile range 540-690 N/m2
   Post -Type A (RHS  Pipe)

Profile	Wall Thickness	Surface Treatment	Length	Rainhat
80x60mm	3.00mm	Galvanized and Electrostatic polyester powder coated or Hot dipped galvanized	On the basis of panel height	Plastic or Metal

  Post -Type B (C  Post)

Profile	Wall Thickness	Surface Treatment	Length	Rainhat
83x64mm	3.00mm	Galvanized and Electrostatic polyester powder coated or Hot dipped galvanized	On the basis of panel height	Plastic or Metal

  Any needs,pls feel free to let me know!
