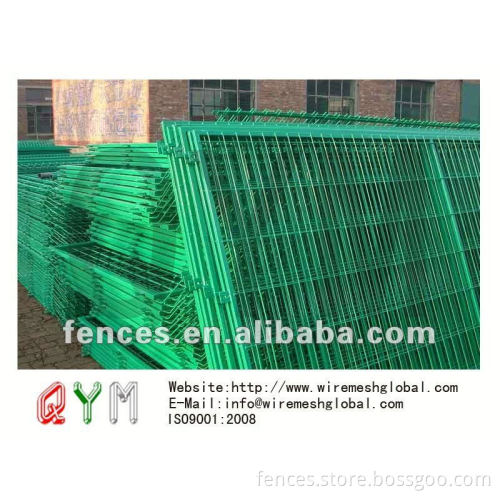

PVC coated welded wire mesh panels

Get Latest Price

Delivery Time:: 15 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Hebei, China (Mainland)

Product Description

Specifications welded wire mesh

1.Certificate: ISO9001:2000

2.wildly use

3.shipping on time

4.superior quality...

PVC coated welded wire mesh panels About welded wire mesh

Specifications of Welded wire Mesh
Opening		Wire Diameter<BWG>
In inch	In metric unit(mm)	Wire Diameter<BWG>
1/4" x 1/4"	6.4mm x 6.4mm	22,23,24
3/8" x 3/8"	10.6mm x 10.6mm	19,20,21,22
1/2" x 1/2"	12.7mm x 12.7mm	16,17,18,19,20,21,22,23
5/8" x 5/8"	16mm x 16mm	18,19,20,21,
3/4" x 3/4"	19.1mm x 19.1mm	16,17,18,19,20,21
1" x 1/2"	25.4mm x 12.7mm	16,17,18,19,20,21
1-1/2" x 1-1/2"	38mm x 38mm	14,15,16,17,18,19
1" x 2"	25.4mm x 50.8mm	14,15,16
2" x 2"	50.8mm x 50.8mm	12,13,14,15,16
Technical Note: 1,Standard roll length: 30m;width: 0.5m to 2.4m 2,Special sizes available on request 3,Packing: in waterproof paper in rolls. Custom packing available at request.

Galvanized Fencing Mesh
Opening		Wire Diameter<BWG>
In inch	In metric unit(mm)	Wire Diameter<BWG>
2" x 3"	50mm x 75mm	2.0mm,2.5mm,1.65mm
3" x 3"	75mm x 75mm	2.67mm,2.41mm,2.11mm,1.83mm,1.65mm
2" x 4"	50mm x 100mm	2.11mm,2.5mm
4" x 4"	100mm x 100mm	2.0mm,2.5mm
Technical Note: 1,Standard roll length:130m;width: 0.5m to 2.4m 2,Special sizes available on request 3,Packing: in waterproof paper in rolls. Custom packing available at request.

PVC coated welded mesh
Opening		Wire Diameter<BWG>
In inch	In metric unit(mm)	Wire Diameter<BWG>
1/2" x 1/2"	12.7mm x 12.7mm	16,17,18,19,20,21
3/4" x 3/4"	19mm x 19mm	16,17,18,19,20,21
1" x 1"	25.4mm x 25.4mm	15,16,17,18,19,20
2" x 2 "	50.8mm x 50.8mm	15,16,17,18,19,20
Technical Note: 1,Standard roll length: 30m;width: 0.5m to 2.4m 2,Special sizes available at request 3,Packing: in waterproof paper in rolls.special packing available on request.
