QYM-Pipe Infilled Temporary Fence

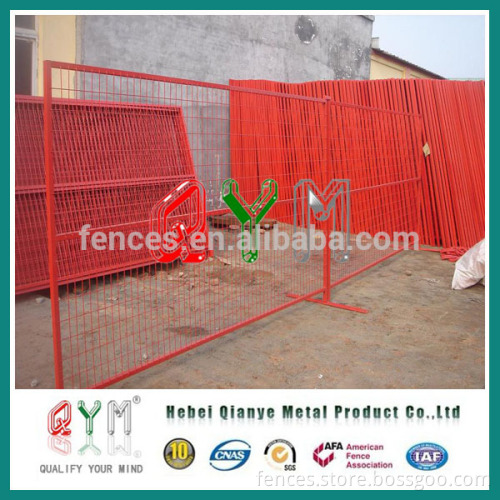

QYM- Temporary Construction Fence     (1) Short Intro: Temporary construction fence, also called portable construction fence is convenient both in installation and movement, which is a main feature of it. The temporary construction fence is widely used in construction sites, temporary protection, major sports events or activities, temporary isolation, quarantine sation with the airport, a large playground and so on.     (2) Temporary Construction Fence Panel Type A (Mesh Infilled):


Frame	Mesh Size	Wire Thickness	Surface Treatment	Panel Width	Heitht
32*1.5m 42*1.5m 48*1.5m	50*150mm 50*200mm 75*150mm 75*300mm 100*300mm	3.0mm 3.5mm 3.8mm 4.0mm	1. Galvanized & Electrostatic Polyester Coated 2. Hot Dipped Galvanized	2.50m 3.00m	1800mm 2100mm 2400mm

    (3) Temporary Construction Fence Base: Plastic base block with cement casting before putting the fence.       (4) Temporary Construction Fence Clamp: For connecting every two panels
    (5) Temporary Construction Fence Panel-Type B(Pipe Infilled)



Frame	Infilled Pipe	Foot	Surface Treatment	Panel Width	Height
32*1.5mm 42*1.5mm 48*1.5mm	12*0.7mm 14*1.0mm 16*1.0mm 20*1.2mm 25*1.2mm	Welded on the Frame or Removable	Galvanized and Electrostatic Polyester Coated or Hot Dipped Galvanized	2.00m 2.50m	1100mm 1250mm 1500mm

    Temporary Construction fence Connection:       Alternative offer for the foot:
