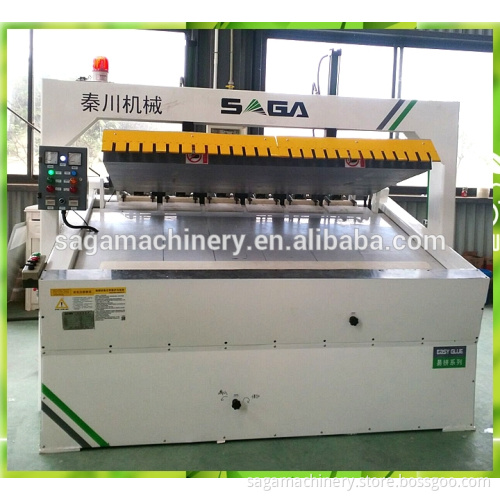

Automatic Small Size Wood Board Joining Machine with Radio Frequency (SP15-SA)

Production Application  Automatic Small Size Wood Board Joining Machine with Radio Frequency(SP15-SA)

Model	SP15-SA
Overall Size	2400(L)*1600(W)*1900(H)mm
Input Power	20Kva
Output Power	15KW
Gross Weight	2000KGS
Gluing Thickness	8~50mm
Gluing Length	1400mm
Gluing Width	1200mm
Frequency	6.78MHz
Horizontal Pressure	12T(6 pieces of hydraulic cylinders)
Vertical Pressure	4T(2 pieces of hydraulic cylinders)
Hydraulic System	From Taiwan
Electric Parts	Schneider,Siemens,Omron,etc
Control System	PLC touch screen
Cooling Type	Force wind cooling
HF Position	Inside
Feeding Type	Manual
Glue	Water-based heat curing glue
Working Temperature	10~40 degree

  Main Features 1.Easy control,normal worker can learn to operate it in short time. 2.Quick glue, gluing time is only in 100 seconds for wood board with standard thickness. 3.High strength,12T hydraulic pressure,gluing strength is twice as high than cold clamp carrier,no open splice problem. 4.Perfect flatness,very few of sanding,save more than 50% material than cold clamp carrier. 5.Any hydraulic cylinder can be locked,can glue wooden board with any size. 6.Main electric parts are imported, like Schneider,Siemens,Omron,etc 7.20°incline,comfortable for worker working. 8.Can work when turn on the power,occupied area is only 2.5m long, and 2m wide.     WORK-LIVE AFTER GLUING   Spare Parts With European and Taiwan Brand
