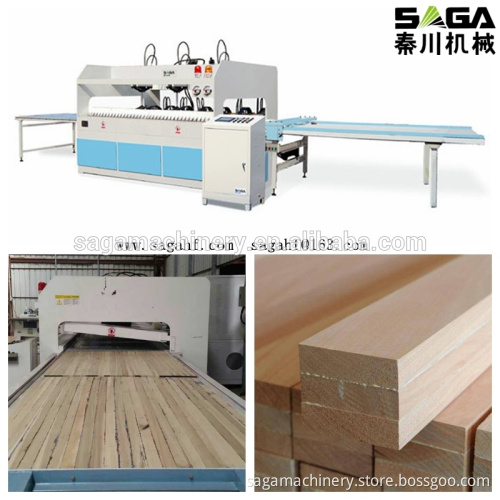

SAGA Wood Board Making Machine For Edge Gluing With RF (SP20-SA Upgrade )

Production Application   Wood Board Making Machine For Edge Gluing combines high frequency dielectric heating with 2 directions press, is suitable for finger joint or edge glued board jointing or gluing the rim of solid door or other wooden block gluing.   Main Features 1.PLC automatic control with auto feeding cart. 2.Electro components mostly use European brand like Schneider,Siemens,Omron to enable stable working.  3.Strict control and regulation on mechanical spare like hydraulic, other spare parts all use international standard.

SPECIFICATION FOR SP20-SA UPGRADE WOOD BOARD MAKING MACHINE
Model	SP20-SA Upgrade
Input Power	3Phase-380V-30KVA
Output Power	20KW
Gluing Size	1220(W)*2440(L)
Gluing Thickness	8mm~100mm
Horizontal Pressure	Cylinder Diameter	50mm
	Number of Cylinders	12PCS
	Total Pressure	36T
Vertical Pressure	Cylinder Diameter		50mm
	NO. Of Cylinders		3PCS
	Total Pressure		9T
Dimensions	L:2700mm,W:2100mm,H:2200mm
Gross Weight	5800KGS

  SMART SERIES Small Size SP15-SA SP20-SA SP30-SA 4800mm long Customise Type SP30-L-SA Wood Gluing Board With High Frequency Technology
Spare Parts With European and Taiwan Brand
