SP30-SA High Frequency Wood Panel Assembly Machine From SAGA

Production Application  High Frequency Wood Panel Assembly Machine combines high frequency dielectric heating with 2 directions press, is suitable for finger joint or edge glued board jointing or gluing the rim of solid door or other wooden block gluing.   Main Features 1.PLC automatic control with auto feeding cart. 2.Electro components mostly use European brand like Schneider,Siemens,Omron to enable stable working. 3.Strict control and regulation on mechanical spare like hydraulic, other spare parts all use international standard.

SPECIFICATION FOR HIGH FREQUENCY WOOD PANEL ASSEMBLY MACHINE
Model	SP30-SA
Input Power	3Phase-380V-40KVA
Output Power	30KW
Gluing Size	1220(W)*2440(L)
Gluing Thickness	8mm~100mm
Horizontal Pressure	Cylinder Diameter	50mm
	Number of Cylinders	12PCS
	Total Pressure	36T
Vertical Pressure	Cylinder Diameter		50mm
	NO. Of Cylinders		3PCS
	Total Pressure		9T
Dimensions	L:2700mm,W:2100mm,H:2200mm
Gross Weight	6800KGS

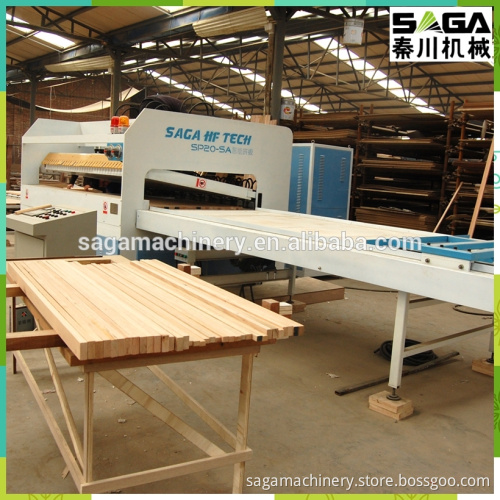

  SMART SERIES Small Size SP15-SA SP20-SA SP30-SA 4800mm long Customise Type SP30-L-SA Wooden gluing board samples
Spare Parts With European and Taiwan Brand
Certification Exhibition  Trasportation About SAGA Saga Machinery Co., Ltd is professional in developing, designing and producing high frequency machinery.Our products cover with high frequency slant gluer, high frequency generator, high frequency vacuum wood dryer, high frequency wood frame assembly machine,high frequency curved plywood press, etc.  Welcome to contact with us! Grace Du ADD:Ganjiang Road of Economic Technology  Development  Zone of Shijiazhuang ,052160, China. TEL:0086-311-88394118 FAX:0086-311-88394119 Cellphone:0086-15632196963 Web:  Skype: grace-saga Wechat:dudulang_1986 QQ:406113846 (DuDuLang) Linkedin:Grace Du(Sales Manager) What's App: +86 15632196963
