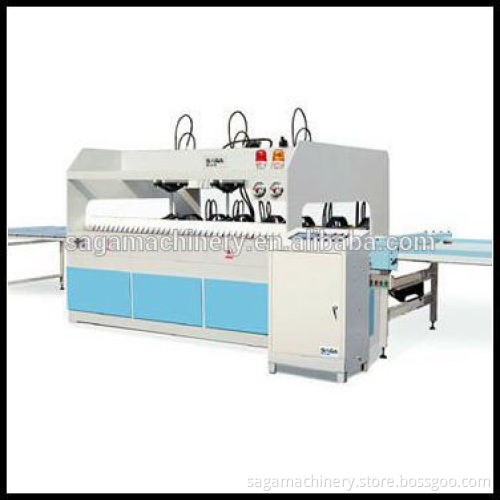

Wood board combination woodworking machine with high frequency

Wood board combination woodworking machine with high frequency    High frequency wood finger joint board machine combines high frequency dielectric heating with 2 directions press, is suitable for finger joint or edge glued board jointing or gluing the rim of solid door or other wooden block gluing.   Character of SAGA  High Frequency edge gluer,clamp carrier and Wood Board Joining Machine      1.PLC automatic control with auto feeding cart.   2.Electro components mostly use European brand like Schneider,Siemens,Omron to enable stable working.   3.Strict control and regulation on mechanical spare like hydraulic, other spare parts all use international standard.   Basic technology data

HIGH FREQUENCY EDGE GLUER
Model	SP20-SA Upgrade
Input Power	3Phase-380V-30KVA
Output Power	20KW
Gluing Size	1220(W)*2440(L)
Gluing Thickness	8mm~100mm
Horizontal Pressure	Cylinder Diameter	50mm
	Number of Cylinders	12PCS
	Total Pressure	36T
Vertical Pressure	Cylinder Diameter	50mm
	NO. Of Cylinders	3PCS
	Total Pressure	9T
Dimensions	L:2700mm,W:2100mm,H:2200mm
Gross Weight	6000KGS

Working picture   SP20-SA standard model     SP30-SA Upgrade model   4800mm long  customized model  Main spare parts   Wooden gluing board samples Transportation   Exhibition pictures  Certification    Related products   After service One year guarantee for whole machine except of high frequency tube 24 hours technical support by e-mail  Calling or door-to-door service Use-friendly English software, user manual and detailed video/CD   About SAGA: Saga Machinery Co,. Ltd is professional in developing, designing and producing High Frequency Machinery. We are a specialized HF Machinery supplier in China. Our productions cover with Wood Dryer, High Frequency Generator,  Curved Plywood Press, Hot Press, Vacuum Wood Dryer, Belt Conveyor, Wood Kiln, Guitar Line Machine, etc.    Welcome to contact us
