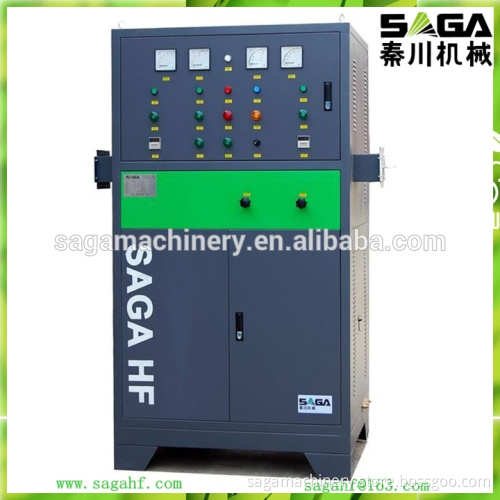

20KW RF Generator From SAGA(HF20-SA)

............................................................................................................................................................... 20KW RF Generator (HF20-SA)  50Hz, 3Phase 4 Wire; Various protection systems;Output power:20kVA/30kVA/50kVA   1.20KW RF Generator  (Radio frequency generator, high frequency machines) is a plant which can turn normal electric power to high frequency (electro-magnetic) power, suitable for fast curing of glue or water.   2.It is suitable for curved plywood forming or wood panel jointing or hard wood drying, it is a core plant for high frequency machinery. .................................................................................................................................................................... Features

POWER	380V 50Hz 3phase 4wire
INPUT POWER	30/40/75kVA
OUTPUT POWER	20/30/50kVA
OSCILLATION	6.78MHz
PROTECTION	Overload protection,wind pressure detection ,filament protection,cooling fan protection
TUNNING MODE	Tunable vacuum capacitor
COOLING MODE	Forced wind cooling
OUTPUT	2 output
OVERAL SIZE	1000*1000*1850mm/1000*1100*1950mm/1300*1300*2100mm
WEIGHT	500/700/1050kgs

  ...............................................................................................................................................................   SPARE PARTS     USAGE FOR HF GENERATOR   1.SOLID WOOD OR PLYWOOD BENDING       2.ALL KINDS OF WOOD DRYING   3.WOOD BOARD GLUING   4.WOOD FRAME ASSEMBLING           INSTALLATION AND DEBUGGING           SHIPPING     Detail information please contact Saga Machinery ............................................................................................................................................................... ABOUT SAGA: Saga Machinery Co,. Ltd specializes in develpoing, designingand producing High Frequency Machineries. We are a professional HF machinery supplier in China. Our products cover with High Frequency Generators, High Frequency Curved Plywood Presses, High Frequency Hot Presses, High Frequency Vacuum Wood Dryers, High Frequency Wood Kilns, High Frequency Wood Door Assembly Machines, High Frequency Picture Frame Assemblers, etc.     Contact Person:   Grace Du   ADD:Ganjiang Road of Economic Technology  Development  Zone of Shijiazhuang ,052160, China.   TEL:0086-311-88394118   FAX:0086-311-88394119   Cellphone:0086-15632196963   Web:    Skype: grace-saga   Wechat:dudulang_1986   QQ:406113846 (DuDuLang)   Linkedin:Grace Du(Sales Manager)
