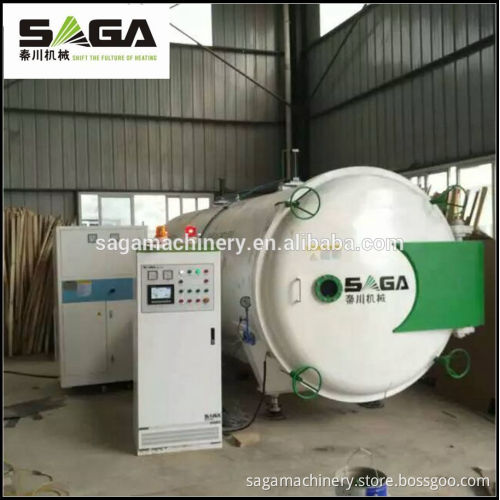

4.5CBM HF Processing timber equipment with vacuum condition

4.5CBM HF Processing timber equipment with vacuum condition   Features Fast drying cycle  Automatic feeder Large capacity PLC automated systems with touch screen control panel  Uniform heating No sparking or bending problem Veneer, panels, hardwood Weighing testing technology Fiber optic temperature testing Description   High frequency wood drying kilns  are many times faster than traditional kiln dryers. The drying process can range from several hours for thinner, softer woods to several days for thicker,harder woods. The HFVD80-SA features an automatic feeder and a quick, automated drying cycle. It has a 50KW high frequency generator, 6T hydraulic pressure and 8m3 capacity.It is an ideal dryer for thick hard woods typically used in the furniture and flooring industry. All models include high-tech Programmable Logic Controllers.The PLC comes with common hardwood presets ready for use. The PLC automates the drying process by starting the hydraulic pump, HF generator, vacuum pump and water system. The water control system pulls the moisture to an external water tank which can then be drained. The weight system calculates change data to read the moisture content of the wood. Our engineers can provide overseas installation, training and are available to provide after-sales service and maintenance. We recommend proper training for safe and prolonged use of the machinery.   Basic Parameter of HFVD45-SA

Overall Size	High frequency generator	1000*1000*1900mm
	Tank	5700*2150*2000mm
	Cooling System	1500*1150*2000mm
Gross Weight		7T
Inside Diameter		1700mm
Tank Thickness		12mm
Effective Size		1000*1000*4500mm
Effective Capacity		4.5
HF Input Power		40KVA
HF Output Power		30KW
Temperature Test		Fiber Optic Temperature Sensor
Moisture Test		Weighing System(Patent)
Cooling system		Stailess steel condenser with stainless steel water-ring vacuum pump
Dewatering		Full-automatic
Hydraulic Cylinder		2PCS 3T
Vacuum pump	Material	Stailess steel
	Power	7.5KW
Feeder Way		Automatic Feeder
Door of Tank		Ears Door(More safe and powerful)
Weighing System		Under the tank(can weight the wood every time)
Full-automatic control system		PLC touch screen

  Drying cases     Standard Parts       Working Live-action     Comparision of before drying and after       Certification            Certification         Installation and Transportation           Guarantee and After-sell Service   One year guarantee for whole machine except of high frequency tube 24 hours technical support by e-mail  Calling or door-to-door service Use-friendly English software, user manual and detailed video/CD   Welcome to contact us
