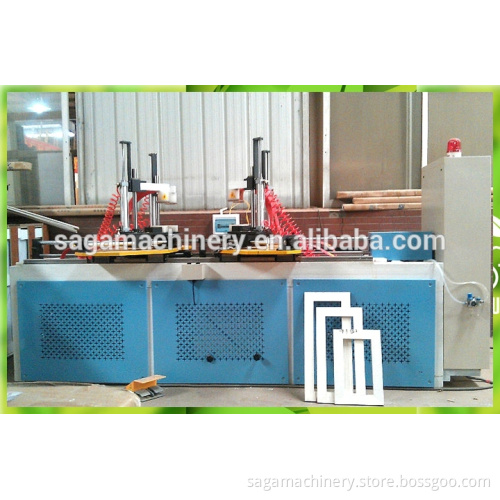

High Frequency Wood Picture Frame Making Machine For Assembly With Glue(SZ5-SA)

High Frequency Wood Picture Frame Making Machine For Assembly With Glue(SZ5-SA)   Suitable for: cabinet or wardrobe door assembling, picture frame or mirror frame assembling as well as assembling for various wooden or MDF frame for furniture   CHARACTER 1 High precision, apply high precision servo motor (much more precise than normal motor or stepper motor), European brand ball screw, origional seimense brand position switch, electro spare parts mostly apply schneider brand 2 High effecience:Human interface control panel, PLC control, speed of motor is adjustable, instant size adjusting, high frequency heating, curing time only few seconds 3 Convenient:User only need to adjust the curing size on control panel, machine will act automatically, pressure also can be adjust according to different material 4 Safe:Strict saftey protection for human and machine    BASIC PARAMETER

Model	Standard SZ5-­SA              Other customized size design available
Precision	≤0.3mm
Rated power	5kW
Min curing size	180*180mm
Max curing size	700*1400mm
Control type	PLC control, human-interface control panel
Protection	Overl load protection, cooling detection,HF earthing as well as HF sheilding
Overal size	3300*680*1600mm
Net weight	1140kgs

    Ball Screw,Precise Part and Seimens Limit Switch PICTURE FRAME AND CABINET DOOR AFTER GLUING Certification Exhibition  About SAGA Saga Machinery Co., Ltd is professional in developing, designing and producing high frequency machinery.Our products cover with high frequency slant gluer, high frequency generator, high frequency vacuum wood dryer, high frequency wood frame assembly machine,high frequency curved plywood press, etc.         Contact Person: Grace Du ADD:Ganjiang Road of Economic Technology  Development  Zone of Shijiazhuang ,052160, China. TEL:0086-311-88394118 FAX:0086-311-88394119 Cellphone:0086-15632196963 Web:  Skype: grace-saga Wechat:dudulang_1986 QQ:406113846 (DuDuLang) Linkedin:Grace Du(Sales Manager)
