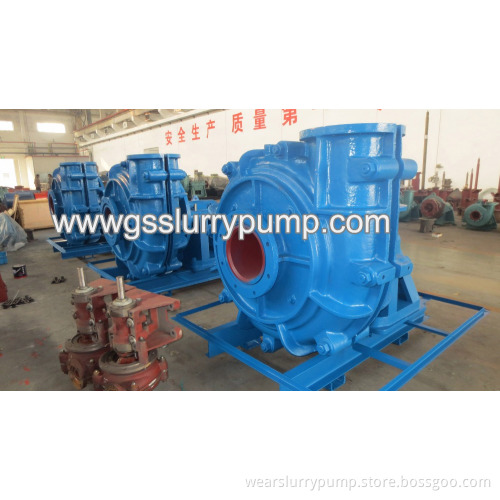

Extra heavy duty highly abrasive slurry Pump, Coal Slurry Pump, Coal Prep Plant Pump

Shijiazhuang Gravel Slurry Pump Industry Co.,ltd locates in Shijiazhuang, Hebei Province, China, it is an integrative production, research, design and sales company, specialized in manufacturing slurry pump products. The company acting as one of the national heavy machinery industry unit, now has been developed into a professional manufacturer of slurry pump, mud pump, slush pump, foam pump, sand-slurry pump. Extra heavy duty highly abrasive slurry Pump, Coal Slurry Pump, Coal Prep Plant Pump Advantage of our slurry pump:   Competitive price; short lead time; powerful technical support for pump selection and problem solving Extra heavy duty highly abrasive slurry Pump, Coal Slurry Pump, Coal Prep Plant Pump  detailed application: 1. Horizontal, cantilevered, centrifugal, single stage slurry pump2.Long bearing life: The bearing assembly is with large diameter shaft and short overhang. 3. Wear resistant and anti abrasion wet parts:  High chrome alloy  and rubber etc. They are completely   interchangeable with each other 4. Easily replaceable liners: Liners are bolted to the casing. 5. Easy adjustment of impeller: An impeller adjustment mechanism is provided below the bearing housing. 6 Discharge direction can be positioned at intervals of 45 degrees 7. Simple maintenance throat bush: the mating face of the throat bush is tapered, so the wear is reduced and removal is simple. 8. Sealing type: pcking seal,impeller sealing and mechanical seal. 9. Widely application: They are designed for handling abrasive, high density slurries in the metallurgical,         mining, coal, power, building material and other industrial departments. parameter selection Extra heavy duty highly abrasive slurry Pump, Coal Slurry Pump, Coal Prep Plant Pump parameter selection table    Meanings of the model: RH1.5B  R----Anti-corrosive rubber material H---- Heavy type slurry pump 1.5----Pump Press out opening is 1.5inch B----Bracket style   component diagram. Extra heavy duty highly abrasive slurry Pump, Coal Slurry Pump, Coal Prep Plant Pump  spare parts 1. All of the metal wet parts can are made of high chromium alloy which has superior wear and erosion resistance or grey iron which has a high rigidity. 2. As the expeller ring is assembled together with the expeller, much pressure can be reduced effectively for the impeller. Meanwhile, it can still maintain a reliable sealing performance. 3. The parts such as labyrinth, labyrinth locknut, end cover and shaft sleeve are used for bearing assembly; these parts can be changed easily and have high accuracy and longer service life. 4. Some fastening parts such as studs and bolts can be used for fixing the other parts securely. All the fastening parts can be attached easily, ensuring the safety. 5. All of the rubber parts have superior erosion resisting performance which can be used for a long life.     Pump Prossible faults and removal: Type RH pump has a compact construction. If it is correctly installed and operated, the pump will have a long life.

Faults	Reason	Removal
Pump fails to discharge any liquid.	Incorrect direction of pump rota- tion and impeller worn. Suction pipe blocked	Check direction of rotation and replace a new impeller
Power consumption on sh- aft is excessive	Rotating component is rubbing on a stationary part. Bearing worn. Drive belt tension too tight Flow rate too large Pump speed and ratio too high. Misalignment or unparallel of ddrive shaft and pump shaft.	Removal the rub Replace the bearing Adjust belt Modify the pump duty and speed. Adjust drive and pump shaft
Bearing is over hearing	Lubricants too much or less. Containing impurities in the lubricant Bearing worn.	Lubricating as requirements. Replace clean lubricant. Replace new bearing.
Bearing has short life.	Misalignment or unparallel of drive and pump motor. Shaft bent. Impeller unbalanced due to wear Foreign object entered into the bearing or insufficient lubrication Incorrect procedure followed in fitting bearings.	Adjusting drive and pump shaft. Replacing shaft. Remove rubbing and replace new impeller Clean the bearing. Replace or refit the bearings.
Pump vibrates or is noisy.	Bearings worn. Impeller unbalanced. Air entered into suction pipe or blocked. Flow rate is none—uniform and pump not primed.	Replaced by new bearings. Replaced by new impeller. Discharge air and remove block. Improve on the pump feeding.

Drive type:   DC Type: The output shaft of a motor is directly connected to the input shaft of a pump via a pump coupler. This type of connection is suitable for applications where the speed of the slurry pump is the same as that of the motor.
CV Type: The pump is driven by a belt connected to the crankshaft of the engine. This way of connection allows for saving space, easy installation, and fast adjustment of pumping speed. The motor is fixed to the motor support frame which is located on the bearing support above the slurry pump.
ZV Type: Another type of belt drive that allows easy adjustment of pumping speed. The motor is directly fixed to the bearing support. This way of installation is suitable for motors with larger horsepower than is possible with CV type of installation. Due to the installation of motor onto the bearing support, this method helps save installation space.
CR Type: This type of belt drive makes it easier to adjust pumping speed. The installation allows both the motor and slurry pump to be fixed to the ground. The motor is installed to the side of the pump. This installation method is suitable for large-power motors. Shijiazhuang gravel slurr pump co.ltd Workshop:  Shijiazhuang Gravel Slurry Pump Industry Co.,ltdhave firstclass production equipment.There are more than 100 sets of equipments,such as lost foam casting production line,shot last machine,heat treatment furnace,CNC lather,digital display large vertical lather,digital display horizontal milling machine,etc. production process   Onsite application: Mine:Black, non-ferrous ore slurry material pump and all kinds of concentrate and tailings conveying Metallurgy:Transport various slurry for aluminium or steel manufacture Coal: Coal mining, washing and various coarse and fine coal slurry transportation Electricity:Remove power plant ash,wash ash,various ash dregs or ash slurry transportation Construction materials:Various mud sand slurry(such as Cement slurry) transportation Chemical: Phosphatic fertilizer or potassic fertilizer factory various abrasive slurry trasportation  Water conservancy:Lake,river dredge, sediment,grit, High plastic clay Suction line to transportation  Packaging & Shipping As mostly we deliver by sea, so we package our pump and parts with plastic cloth inside and waterproof outside. The wooden cases are export standard, its thickness is 10mm at least. Also we have professional workers to do this cases.We are very near to Tianjin seaport, so it is comfortable to deliver anytime, also the short delivery save the cost. Our Service: OEM service: Produce the pump and spare parts according to client's drawing or sample. Pump slection: Help customers select the type, size and operating speed of pumps that will perform at the lowest cost. Using service :Offer Design, Installation, Repair and Maintenance solutions and Mine measuring up service. Quality control :Pay more attention to the quality in every process with different instruments. Material service :Interchangeable metal design allow best material choice for any application. After-sales service: Provide lifetime after sale service to solve any question during uses and large stock for standard spare parts. Guarantee :One year guarantee for whole machine except of the wet end parts. Quality  control:

Stages of manufacture	Quality cotrol activities
Raw material arrival	Sampling, material chemical analysis
Casting and composition	Material material chemical analysis of pump parts
	Casting quality inspection
Key component machining	Dimension precision inspection
	Impeller balancing
General assembly	Procedure operaion
	Hydraulic static test
Performance test of pump unit	Capacity and head
	Vibration and noise
	Bearing temperature
Final inspection	Packaging of pump unit
	Documents
	Spare parts and accessories

  FAQ 1.Are you a manufacturer? Yes, we have been in manufacturing and marketing industry centrifugal pump over 20 years. 2.What is your slurry pump manufacturing process? Casting------heat treatment----mechanical processing----assembly 3.What information should I let you know if I want to get a quotation? Pump capacity, pump head, medium, medium temperature, pump material, quantity, if possible, please also provide the pump model you are using now, price will be calculated as per the pump model, if not, we will recommend relevant product for reference. 4.Do you impact the finished product?   Yes, each batch of production and finished product will be quality checked strictly before delivering. Contact us
