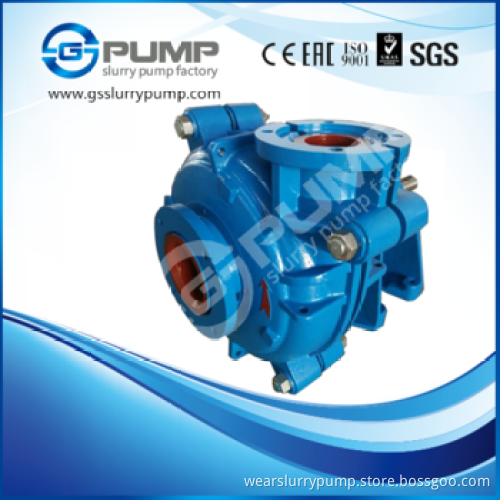

mining slurry pump centrifugal type

  Company Information   Shijiazhuang Gravel Slurry Pump Industry Co.,Ltd is a huge manufacturer of slurry pump, Gravel sand pump, Dredging pump,Chemical pump,Multistage pump,Water pump,Submersible sewage pump and pump spares in North of China. Our variety of pumps are widely used in Mining, Metallurgy, Coal washery, Power plant, Sewage water treatment, Dredging,Chemical and Petroleum industries.  Product Description   Detailed specification:   1. Horizontal, cantilevered, centrifugal, single stage slurry pump.   2.Long bearing life: The bearing assembly is with large diameter shaft and short overhang.   3. Wear resistant and anti abrasion wet parts:  High chrome alloy  and rubber etc. They are completely   interchangeable with each other   4. Easily replaceable liners: Liners are bolted to the casing.   5. Easy adjustment of impeller: An impeller adjustment mechanism is provided below the bearing housing.   6 Discharge direction can be positioned at intervals of 45 degrees   7. Simple maintenance throat bush: the mating face of the throat bush is tapered, so the wear is reduced and removal is simple.   8. Sealing type: pcking seal,impeller sealing and mechanical seal.   9. Widely application: They are designed for handling abrasive, high density slurries in the metallurgical,         mining, coal, power, building material and other industrial departments.   Slurry Pump Parameter Selection Table:      Slurry Pump Componet Diagram:
Slurry Pump Structural Drawing:


  Slurry Pump Shaft Seal:    Packing Seal :
As one of the most commonly used seals for rotating shafts, the packing seal can come with low-flush or full flush arrangement which uses flushing water to prevent media from escaping the pump housing. This kind of seal is suitable for use under all pumping conditions. In situations where corrosive solids or high temperature might be encountered, Teflon or aramid fiber is used as the packing material for the gland. For high abrasion conditions, a ceramic shaft sleeve is available.    Expeller seal:  The combination of impeller and expeller creates the pressure needed to seal against leakage. Together with the gland seal or lip seal which is used as the shut-down seal, this type of seal can handle sealing requirements for applications where full-flush gland seal is impractical due to lack of water on the site, or sealing water is allowed to enter inside the pumping chamber to dilute the slurry.   Mechanical Seal :
MH series heavy duty slurry pump utilizes a leak-proof mechanical seal design which allows easy installation and replacement. Other types of mechanical seal are among options to suit the slurry pump for various pumping applications.   Slurry Pump Drive Type:    Slurry Pump Production process:      Packaging & Shipping  Testing     Quality  control:

Stages of manufacture	Quality cotrol activities
Raw material arrival	Sampling, material chemical analysis
Casting and composition	Material material chemical analysis of pump parts
	Casting quality inspection
Key component machining	Dimension precision inspection
	Impeller balancing
General assembly	Procedure operaion
	Hydraulic static test
Performance test of pump unit	Capacity and head
	Vibration and noise
	Bearing temperature
Final inspection	Packaging of pump unit
	Documents
	Spare parts and accessories

    SERVICES AFTER-SALE:   As the slurry pump wet ends parts such as the impeller,volute liner,FPL insert,Throat bush are consumption parts and we could provide you always the qualified slurry pump parts within very short time.   SERVICES PACKING&TRANSPORT Considering the order pump size and we could provide case or pallet as per your need to make sure it safe enough during the long distance road and ocean shipping.have its own export company  and so we could help you find the best ocean shipping solution and service for you from the goods out of factory to your destination.   SERVICES INSTALLATION We have more than 20 years experienced pump installation workers and are very aware of any onside application.We could provide abroad pump installation service and expect pump manufacturing and sales,abroad pump installation is getting more and more popular by our regular clients abroad.   SERVICES TECHNICAL SUPPORT Performance Chart,Components Diagram,Installation Drawing, our newest E-Catalogue,please feel free to send us a email and we will send you within 24 hours.   On-site Application Slurry Pump On-site Application:
  Mine:Black, non-ferrous ore slurry material pump and all kinds of concentrate and tailings conveying   Metallurgy:Transport various slurry for aluminium or steel manufacture   Coal: Coal mining, washing and various coarse and fine coal slurry transportation    Electricity:Remove power plant ash,wash ash,various ash dregs or ash slurry transportation   Construction materials:Various mud sand slurry(such as Cement slurry) transportation   Chemical: Phosphatic fertilizer or potassic fertilizer factory various abrasive slurry trasportation    Water conservancy:Lake,river dredge, sediment,grit, High plastic clay Suction line to transportation   Pump Spares Slurry Pump Spare Parts:       FAQ FAQ:   1.Q:Are you a factory or trading company?
A:We are a factory.
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Shijiazhuang City, Hebei Province, China.You can fly to Shijiazhuang airport directly.All our clients, from home or abroad, are warmly welcome to visit us!    3.Q:What is The material of your products? A: The material is  High chrome alloy or Rubber. We can also choose material as customers’ requirement.
4.Q:How can I get some samples?
A: We are honored to offer you samples.
5.Q:How does your factory do regarding quality control?
A:"Quality is priority. we always attach great importance to quality controlling from the very beginning to the very end.  Our factory has 15~20QC.   Contact Person Bruce Zhang
