  Company Information Shijiazhuang Gravel Slurry Pump Industry Co.,Ltd is a huge manufacturer of slurry pump, Gravel sand pump, Dredging pump,Chemical pump,Multistage pump,Water pump,Submersible sewage pump and pump spares in North of China. Our variety of pumps are widely used in mining, metallurgy, coal washery, power plant, sewage water treatment, dredging, and chemical and petroleum industries.   Product Description   Specification:
Size (discharge): 25mm to 300mm
Capacity: 3.4~ 1100 m3/hr
Head: 6m ~ 135 m
Efficiency:Up to 92%
Materials:Cast iron,SS 304,SS 316,Bronze etc
  MIH chemical pump  can transport medium which is corrosive or polluting water like liquid, it is widely used for industry, oil, mineral, power station, food/paper/medicine/textile factory and waste water processing and environmental protection, the medium temperature is -20~ +105 degrees, if need, it can adopt double-end seal cooling unit, then can transport liquid with temperature from -20~+280 degrees   Detailed specification:

Working Principle:	Centrifugal type
Main applications:	Chemical
Driver:	Electric motor or Diesel engine
Power Specs:	220V, 240V, 380V, 400V, 415V, 440V, 50hz/60hz
Max.permissible fluid temperature:	105°C(221°F)
Type of connection:	Flange
Installation position:	Horizontal chemical pump
Casing/Inner parts material:	Cast iron,SS 304,SS 316L,Duplex SS
Shaft seal type:	Mechanical seal
Maximum drive rating:	90KW(10HP)
Maximum caliber:	300mm(12 inch)
Maximum discharge-side pressure:	1.25MPa(12.5bar)
Maximum head:	125m(410ft)
Flow rate range:	6.3-400m3/h(27.7-1760US.GPM)

   MIH Chemical Pump Parameter Selection Table

Model	Inlet mm	Outlet mm	Capacity  m3/h	Head  m	Electric motor		Impeller  mm
					model	KW
MIH50-32-125	50	32	12.5	20	Y90L-2	2.2	125
MIH50-32-250	50	32	6.3	20	Y90S-4	1.5	250
MIH65-50-125	65	50	25	20	Y100L-2	3	125
MIH65-40-250	65	40	12.5	20	Y100L 1 -4	2.2	125
MIH80-65-125	80	65	50	20	Y132S 1 -2	5.5	125
MIH80-50-315	80	50	50	125	Y200L 2 -2	37	125
MIH80-50-315	80	50	25	32	Y132S-4	5.5	125
MIH100-80-125	100	80	100	20	Y160M 1 -2	11	160
MIH100-65-315	100	65	100	125	Y280S-2	75	200
MIH100-65-315	100	65	50	32	Y160M-4	11	200
MIH125-100-200	125	100	200	50	Y225M-2	45	250
MIH125-100-315	125	100	100	32	Y160L-4	15	250
MIH125-100-400	125	100	100	50	Y200L-4	30	315
MIH150-125-250	150	125	200	20	Y180M-4	18.5	250
MIH150-125-315	150	125	200	32	Y200L-4	30	315
MIH150-125-400	150	125	200	50	YB250M-4	55	400
MIH200-150-250	200	150	400	20	YB225S-4	37	250
MIH200-150-315	200	150	400	32	YB225M-4	45	315
MIH200-150-400	200	150	400	50	YB280S-4	75	400

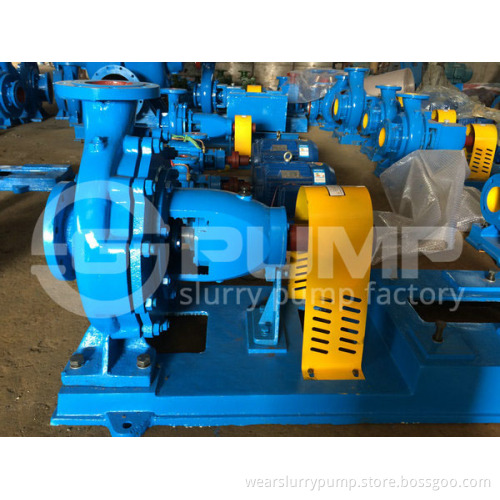

    MIH Chemical Pump Structural Drawing     MIH Chemical Pump Display:      Packaging & Shipping   MIH Chemical Pump Shipping:      Pump Spares MIH Chemical Pump Spare Parts:           On-site Application MIH Chemical Pump On-site Application:
  Our Own Factory   FAQ FAQ:   1.Q:Are you a factory or trading company?
A:We are a factory.
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Shijiazhuang City, Hebei Province, China.You can fly to Shijiazhuang airport directly.All our clients, from home or abroad, are warmly welcome to visit us!    3.Q:What is The material of your products? A: The material is  High chrome alloy or Rubber. We can also choose material as customers’ requirement.
4.Q:How can I get some samples?
A: We are honored to offer you samples.
5.Q:How does your factory do regarding quality control?
A:"Quality is priority. we always attach great importance to quality controlling from the very beginning to the very end.  Our factory has 15~20QC. Contact Person
