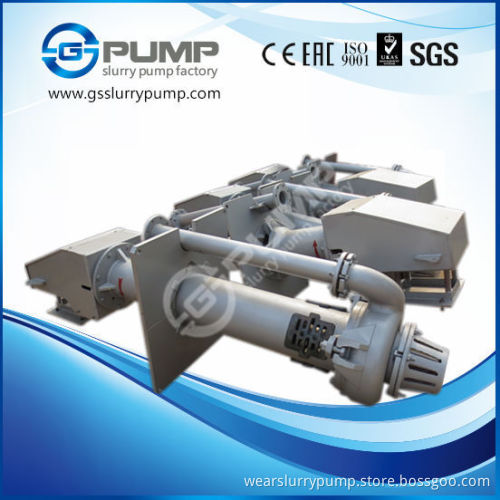

Submersible mineral vertical slurry pump, vertical sump slurry pump

 Specification

1.Available depths:	from 0.9m to 3m.
2.Chrome proportion:	not lower than 27% Chrome Alloy.
3.Drive type:	belt driven and direct drive are all available.
4.Material:	high chrome alloy,rubber or polyurethane.
5.Application:	transder sewage,waste water,oil sands,ash,concrete slurry...
6.Agitator:	under the pump with agitator.
7.Voltage	380V,50Hz.
8.Slurry density:	can up to 65% with solids/slurry.

Material   1.Impeller: high-chromium alloy or rubber 2.Volute liner: high-chromium alloy 3.Shaft: 45# steel 4.Shaft sleeve: ductile casting 5.Frame plate: casting 6.Shaft Seal :Packing seal,Mechanical seal or Expeller seal. We can choose the pump material according to pump working condition.    Structure Submersible slurry pump with extended—length shaft (L series) is suitable to operate in deep level in liquid. Guide bearing is added on this pump to make its operation more stable and flushing water should be fixed at the position of guide bearing.   M(R)V Vertical Slurry Pump Performance Chart:   M(R)V Vertical Slurry Pump Performance Data Sheet:

Model	Material	Capacity            (m3/h)	Head            (m)	Max Power (kw)	Speed (rpm)
MP(R)-40PV	Metal/Rubber	7.2-39.6	3.9-27.4	15	1000-2200
MP(R)-65PV	Metal/Rubber	19.08-102.6	5-31.1	30	700-1500
MP(R)-100PV	Metal/Rubber	41.5-259.2	5.1-37.2	70	500-1200
MP(R)-150PV	Metal/Rubber	115.2-576	6.7-35.7	110	500-1000
MP(R)-200PV	Metal/Rubber	180-734.4	7.1-28.2	110	400-850
MP(R)-250PV	Metal/Rubber	363-1188	7-36	200	400-750
MP(R)-300PV	Metal/Rubber	385-1492	7.8-55	250	400-700

  Spare Parts We guarantee highest quality spare parts readily available to service for your process running. OEM or upgraded specification spare parts, coupled with full engineering design capability, will ensure reliability and optimimal performance time. Many of our slurry pump components: impellers,frame & back liners,seals,bearing housings and bases. All slurry pump spare parts are 100% interchangeable with Warman & Weir pump brands. You will save your cost and time by working with our slurry pump. The material of spare parts are high chrome alloy,rubber and polyurethane.All are anti-wear and corrosion resistant.
High Chrome Alloy Spare Parts Natural Rubber Spare Parts Polyurethane Spare Parts
Relative pumps Application Application Horizontal centrifugal mining slurry pump is widely used in transport slurry with slurry with strong corrosive proof and high concentration for many industries such as metallurgy, mine, coal, electric power, building materials and so on.   Problem&Remove Some problems may arise in the process of slurry pump's application.According to the production and the client appliction experience for many years,we give the following solutions:
