Upright Adjustable Reinforcement Tube Bender

Specifications Compared with the first generation AB-C1 bender, the space length of the two driving

shafts of the

  This machine is the second generation of AB-C1. Compared with AB-C1, the space length of the two driving shafts of the machines is adjustable; thereafter we can bend various diameters round pipe, square pipe, as well as large and small diameter arc and round products. Owing to the adjustable transverse distance of the two shafts, it can bend large pipe easily. In operation, we can get arc and round parts with different diameter by controlling the press-down sizes of the driven roller.   There are 9 kinds of the dies come with the machines, 8 kinds for square pipe: 15×15mm, 20×20mm, 25×25mm, 30×30mm, 40×40mm, 50×50mm, 60×60mm, 70×70mm. They also can bend rectangular pipe. 1 set for bend flat iron. Besides that.    there are 9 kinds of round pipe dies for choose, φ16mm, φ19mm, φ22mm, φ24mm, φ30mm, φ36mm, φ50mm, φ63mm, and φ76mm.

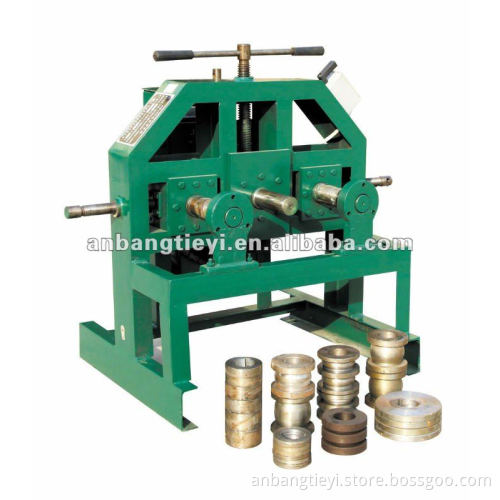

	AB-C2 Upright Adjustable Reinforcement Pipe Bender
Working Ability	Square Pipe	15mm×15mm80×80mm
	Round Pipe	Φ22mm100mm
Motor  Performance	Power 1.1KW   Voltage 380V
Packing Dimension	800mm×700mm×700mm
N.W. (kg)	300
G.W. (kg)	330

  This is the newest third based on the AB-C1 inproved, mainly take the vantage of the gears' running and hydraulic device. The operation is more easy, portable, wider. The working ability is to be the range 15to  100( the thickness is less than 5mm), run fast, and the running speadis steady. There is one set of combined moulds(  15-  70mm) and one set for flat iron. Additionally, there is   80*80mm,    100*100 and all kinds of rougnd pipe moulds(16- 76mm)  you can choose.

	AB-C3 Upright Adjustable Reinforcement Pipe Bender
Working Ability	Square Pipe	15mm×15mm100×100mm
	Round Pipe	Φ16mm-100mm
Motor  Performance	Power 202KW   Voltage 380V
Packing Dimension	1100mm×780mm×1210mm
N.W. (kg)	404
G.W. (kg)	450
