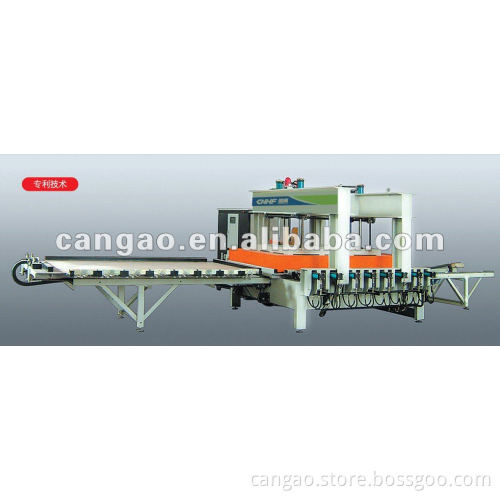

HF board jointing machine CGPB-78P

Specifications HF board jointing machine is suitable for integrated materials, finger-joint, edge-glue-board/panels

  HF board jointing machine: Feature: 1, 5-10% higher outturn rate                        2, high efficiency (1-3min)                         3, Saving glue(one componet glue, not bi-componet)       4, energy saving(5-30kW.h/cubicM)                   5, Stable quality: less deformation(heat only on glue line, not on timber, can recognize the board with higher moisture)                                    6, Easy loading and unloading                       7, Touch screen of human-machine interface; auto fault alarming system, discover the fault reason and position; automatically display the working data; electronic operation instruction built-in

Type	CGPB-78PS
Workbench size	1550 ×2600mm
working thickness(mm)	10-150
Material inlet model(Feeding model)	AUTO
Upper pressure	26T
Back pressure	52 T
Weight	9
Overall dimensions	About 9100×4300×2200mm
