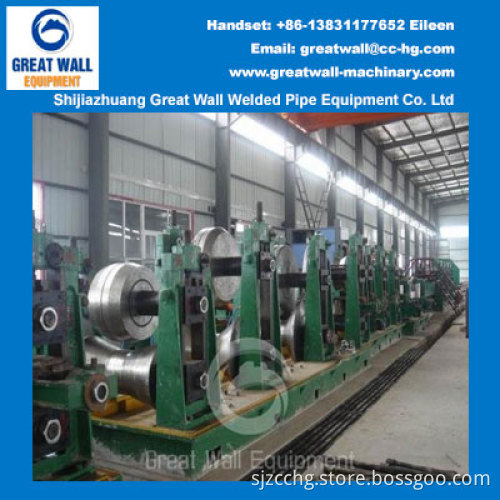

DLW6006 Multi Purpose Cold Roll Forming Line

Product Details:

Payment & Shipping Terms:

Product Description

The DLW600-6 Multi-purpose Cold Roll Forming Line is a special equipment for cold bending profile steel, square and rectangular pipe and circular pipe.

Integrating the production work crafts of high frequency welded pipe unit and directly molding side welded pipe unit, it possesses the characteristics of the two and can be used in different ways.

This unit can also produce steel sheet pile which is used to fi-earthwork in the tunnel construction or other foundation works, and special pipes for air cooling condenser used by electric power plant or steel mill.

Product model number: DLW600-6

Diameter of circular pipe: φ60-φ165mm

Range of square pipe:60-60-2 160-160-6

Wall thickness: 2 -6mm

Steel strip material: δB≤520Mpa.δS≤340Mpa Mild steel & low alloy steel, -≤70, etc

Welding speed: 6-50m/min

Main motor power: 250kw

High frequency equipment: 400Kw or 600Kw

Equipment composition:

The DLW600-6 Multi-purpose Cold Roll Forming Pipe Equipment consists of an uncoiling machine,Unbender unit, active Flattening machine, cutter & butt welder, Storing Loop, forming and sizing unit, Computer flying saw, End milling machine, hydrostatic testing machine, inspected equipment, charge table, sack & bale machine, high frequency DC drag, product line electric appliance.
