High Speed Uncoiling-Slitting-Recoiling Line
Your message must be between 20 to 2000 characters
Contact NowProduct Details:
|
Place of Origin: |
Shijiazhuang City, China |
|
Type: |
Slitting Line High Speed Uncoiling-Slitting-Recoiling Line |
|
Tags: |
Slitting Line |
Payment & Shipping Terms:
|
Price: |
Get Latest Price |
|
Port: |
Any Port in China |
|
Minimum Order Quantity: |
1 Sets |
|
Payment Terms: |
L/C,T/T |
Product Description

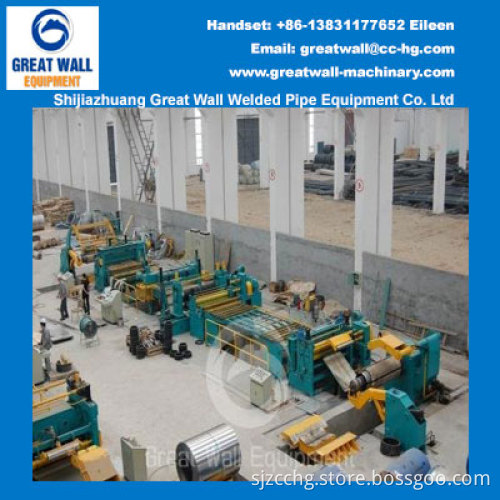

High Speed Uncoiling-Slitting-Recoiling Line
This line is used for coil with different specifications, through uncoiling-slitting-recoiling to needed width coil for the application of all kinds of stamping line.
This line is reasonable in layout, easy operation, high level of automation, high productivity which could processing all kinds of CR and HR coil, silicon coil, stainless coil, colored coil, aluminum coil, galvanize coil or painted coil. This line is broadly applying in metal plate processing industry, like car, container, household appliance, packing, construction material, etc. This line is composed of coil car, uncoiler, slitter, scrap winder, shearer cutting coil head or tail, tension pad and recoiler, etc. as well as pendulum middle bridge, pinch device, steering device. This line is an auto coil processing equipment which integrate mechanical, electrical, hydraulic, pneumatic all together.
Main Technical Parameter
|
Name\Model |
2×1300 |
2×1600 |
3×1300 |
3×1600 |
|
Coil Thickness(mm) |
0.3-2 |
0.3-2 |
0.5-3 |
0.5-3 |
|
Coil Width(mm) |
600-1300 |
600-1600 |
600-1300 |
600-1600 |
|
Slitting Strips |
2-20 |
2-20 |
2-15 |
2-15 |
|
Strip Width Precision(mm) |
±0.1 |
±0.1 |
±0.15 |
±0.15 |
|
Line Speed(mm) |
10-120 |
10-120 |
10-120 |
10-120 |
|
Coil Weight(T) |
10 |
15 |
20 |
30 |
|
Coil I.D.(mm) |
Ф508 |
Ф508 |
Ф508,Ф610 |
Ф508,Ф610 |
|
Recoiling I.D.(mm) |
Ф508 |
Ф508 |
Ф508 |
Ф610 |
|
Main Shaft Dia.(mm) |
Ф220 |
Ф240 |
Ф240 |
Ф240 |
