JY1300-2 Slitting Equipment
Your message must be between 20 to 2000 characters
Contact NowProduct Details:
|
Place of Origin: |
Shijiazhuang , Hebei, China |
|
Type: |
Slitting Line |
|
Tags: |
|
Payment & Shipping Terms:
|
Price: |
Get Latest Price |
|
Port: |
Any port in China |
|
Minimum Order Quantity: |
1 Sets |
|
Payment Terms: |
L/C,T/T |
Product Description

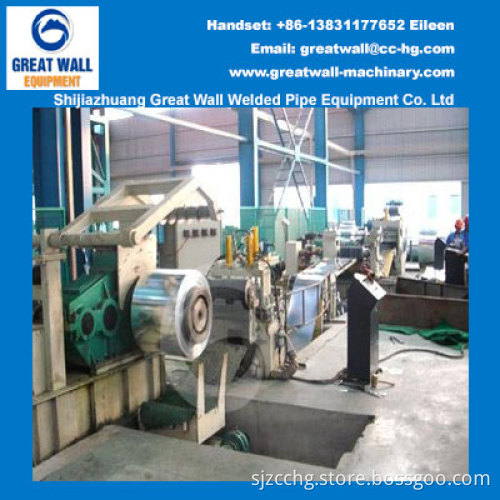

Slitting line:
The JY1300-2 slitting equipment is used to cut volumed steel plates/sheets, and coils into several steel strips of certain widths and wrap into steel strip coils. The processed material, the band steel coil, is then used for cold bending welded pipe production and high frequency welded pipe production lines.
This unit comes in two different types; hydraulic and mechanical.
The JY1300-2 slitting equipment is highly efficient and accurate, and consumes lower energy levels.
Product model number: JY1300-2
Cutting width: 400-1250mm
Wall thickness: 0.5-2mm
Cutting way: circular shear
Cutting pattern: initiative or tension cutting
Steel strip material: δB≤580mpa, δS≤350mpa, Mild steel & low alloy steel
Equipment composition:
The JY1300-2 slitting equipment consists of the following units. loading machine, uncoiling machine, Unbender unit, Grip feed device, Flattening machine, horizontal cutter, centering device, rotary cutter, slitter edge taking machine, compartment and tension device, fle-ible compartment and guiding device, steel strip coiling apparatus, unloading device, hydraulic station, and electric control system.
