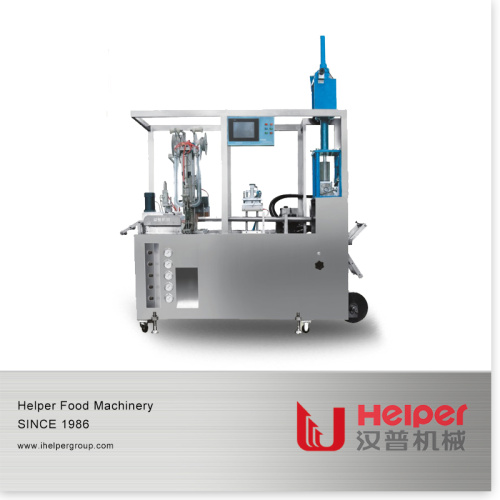

Economic Automatic Sealant Packing Machine

About Economic Automatic Sealant Packing Machine

This machine is manufactured according to silicone adhesive characteristics and adopt foreign advantage technology,it is an ideal flexible packing equipment and has such function as hot sealing, clipping and accurate portioning filling. It is controlled by advanced PLC and driven by single-phase AC motor to realize automatical operation.
The advantage of this machine is stable and reliable performance without stretching to film, so that no damage of flim in the process of sealing and packing.
The whole machine is manufactured by 304 stainless steel and its mechanical properties and corrosion resistant capacity can meet customer requirements of production. The automatical supply film device, copper word printing codes device and quantitative cylinder are all available for this machine.

Main technical parameters

1. Dimention: L×W×H=2040×920×2500 mm
2. G.W.: 650kg
3. Clipping speed: 20-25 time/min
4. Power: 6.5kw
5. Voltage: three-phases AC 380±10%
6. Air source: working pressure 0.6~0.8Mpa
7. Clip: U-shape clip
8. Film: Aluminium-plastic film or nylon membrane
9. Quantitative error: ±1.5g (there maybe a little less according to the material with different density)
